​ RGB or RGBW LED module illumination block light

RGB or RGBWLED moduleillumination block lightusedfor the soft film ceilingProductParameter ItemRGB or RGBW led block chain module for the soft film ceiling Voltage 24V LED Type 3030
Products Inquiry

Product Details

 RGB or RGBW   LED module illumination block light

used  for the soft film ceiling

led block module.png

Product Parameter


RGB or RGBW led block chain module for the soft film ceiling

    Voltage    24V
    LED Type    3030 RGB
    LED Qty/Module    6leds/module or 8led optional
    Size    L 70mm* W 70 mm
    LED Modules/String    20 modules/string
    Housing Body    aluminium
    Power    6W/PCS
    IP    IP 20
  color    RGB/RGBW/RGB addressable  optional
    connector    3/4pin JST female and male connector


These module extremly for backlighting like Channel letters application.
Each module sticked a 3M tape on back side of case it's chained by 20pcs.
You can cut down and every module addressable ,but watch the correct.Signal in and out put direction
The whole module covered by PVC injection coating  and it's IP65 rated ,but the JST.
Connectors on start and end of string it's IP20 (support customization).

Control IC included, supporting numerous color-change effects.
Controlled by SD controller,Arduino,DMX512,Artnet.
Rigid white PCB, 24V 12V low voltage input.
Every 1 Leds linear separable, custom-length available.
Eco-green light, no UV, IR.
Extremely long lifespan &lower power

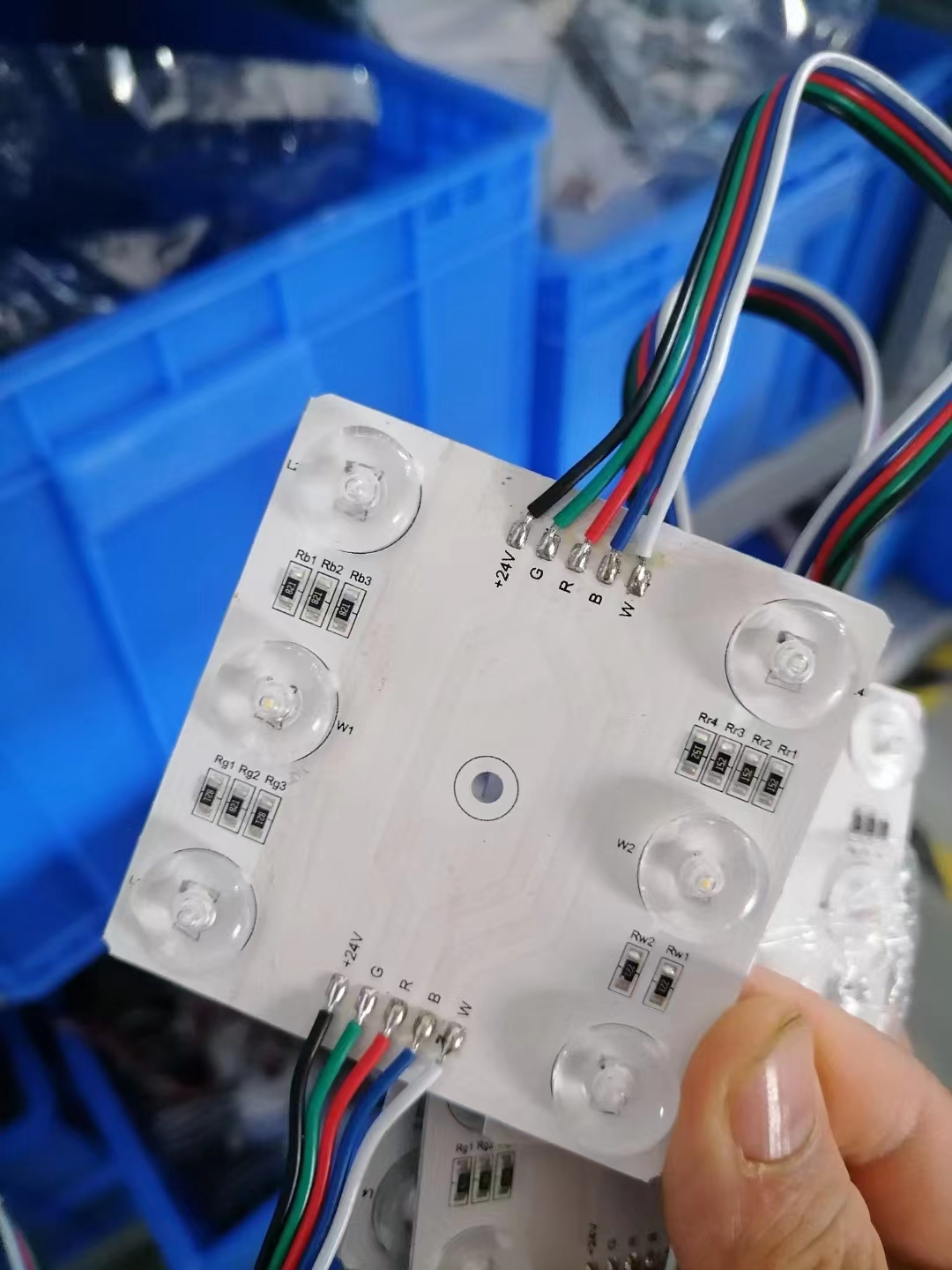

RGBW ( without ic )

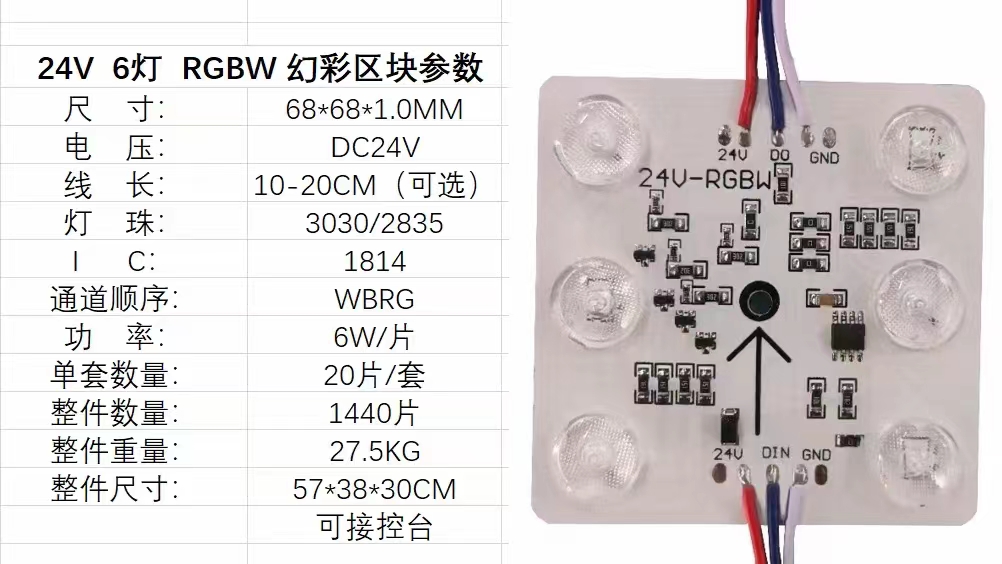

TM1814 RGBW type

TM1934 dual signal RGB type

1916 ic with dual signal also

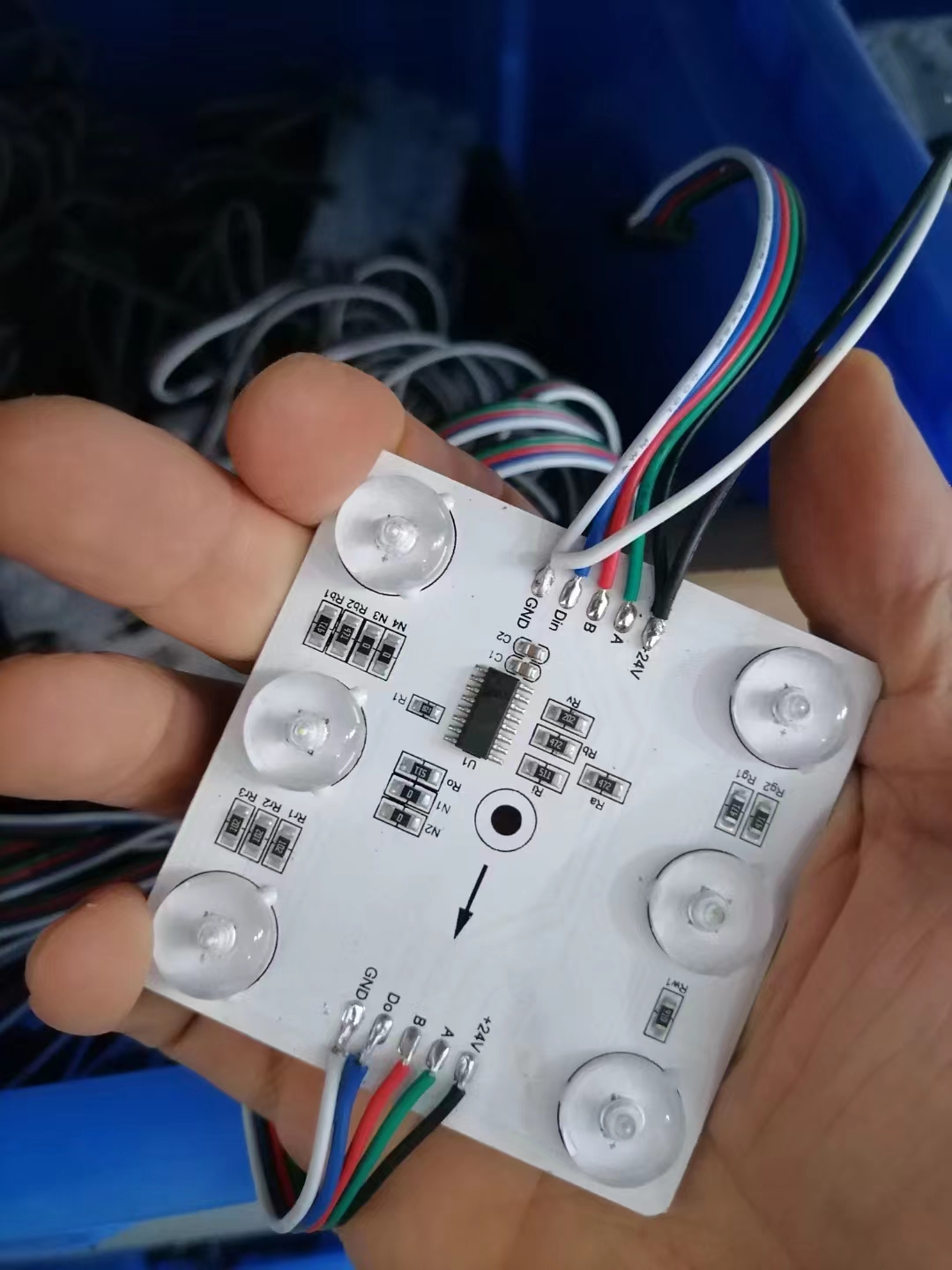

1916 24v led block light (1).jpg

waterproof Type

tm1934/tm1935/1916/GS8206 ic optional

1914pixelledmodule (6).jpg

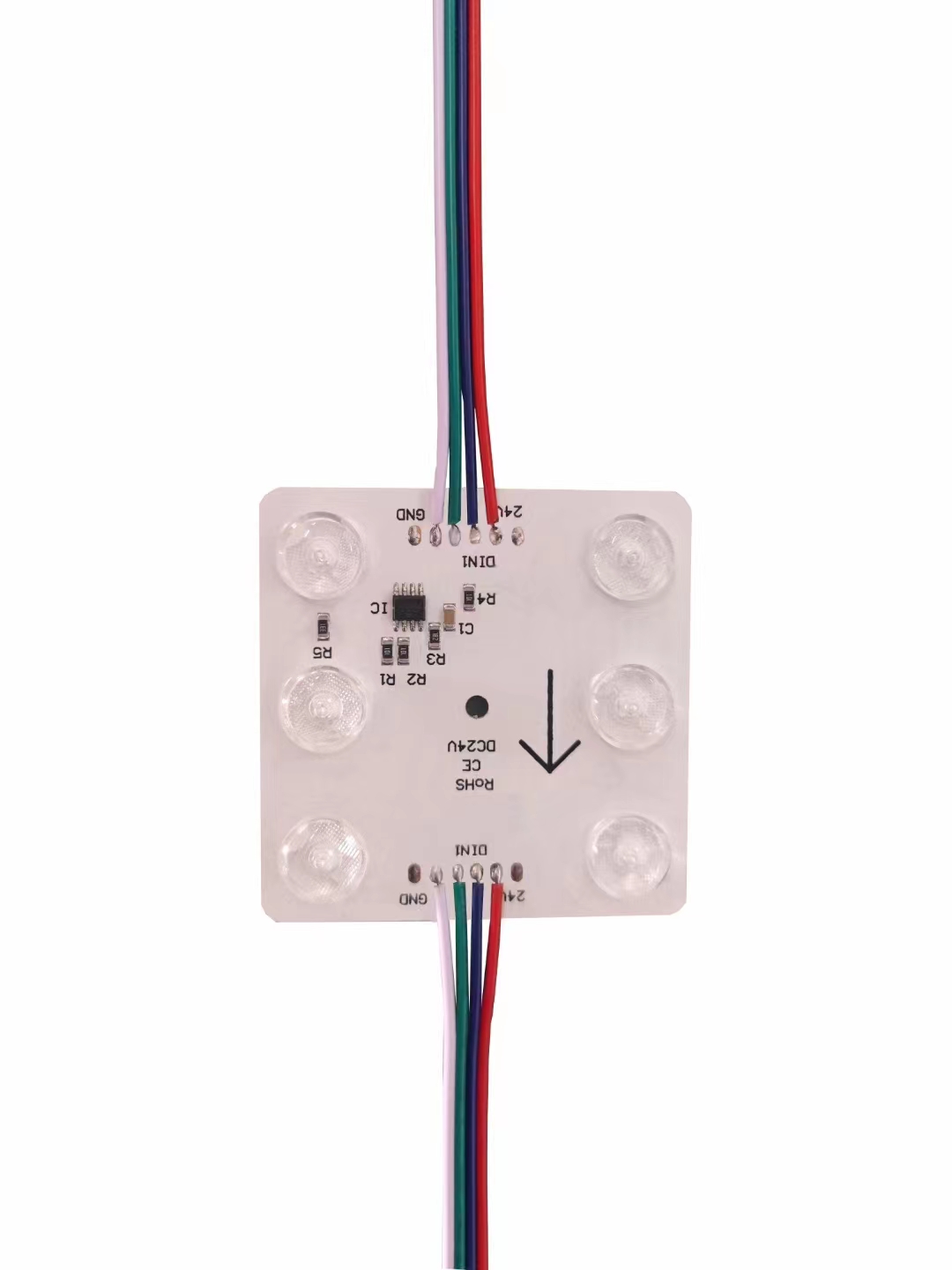

Normal ws2811 ucs1903 sm16703 spi control optional


Normal RGBW color  optional RGB+2700K/4000k/6000k


24v  rgbw.jpg

Other  SPI type optional

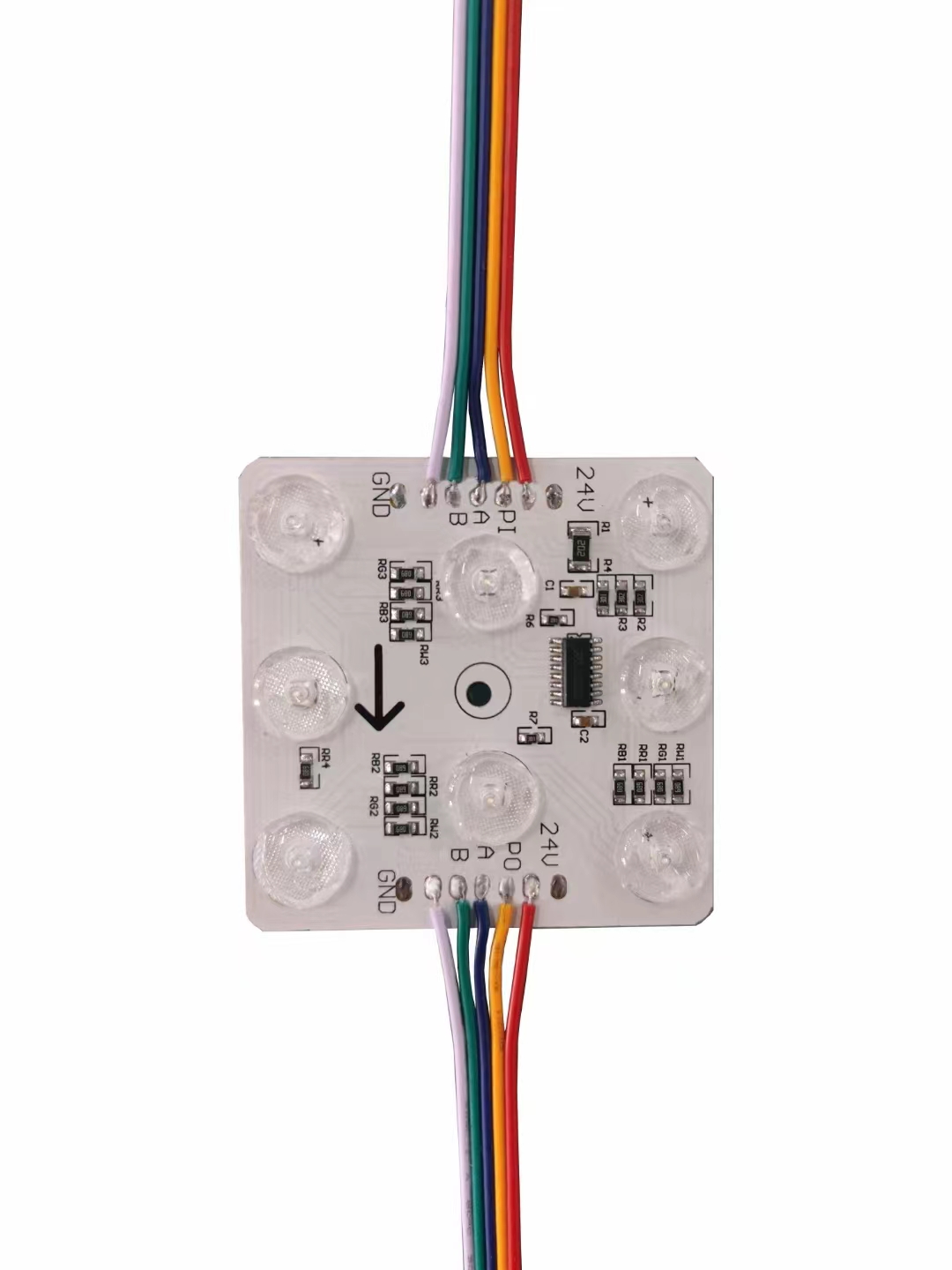

Dmx512 type optional

rgbw dmx512 led module block.jpg


SPI-dual sigal

RGBW led type

Dual white CCT led type

SPI dmx and normal RGB optional

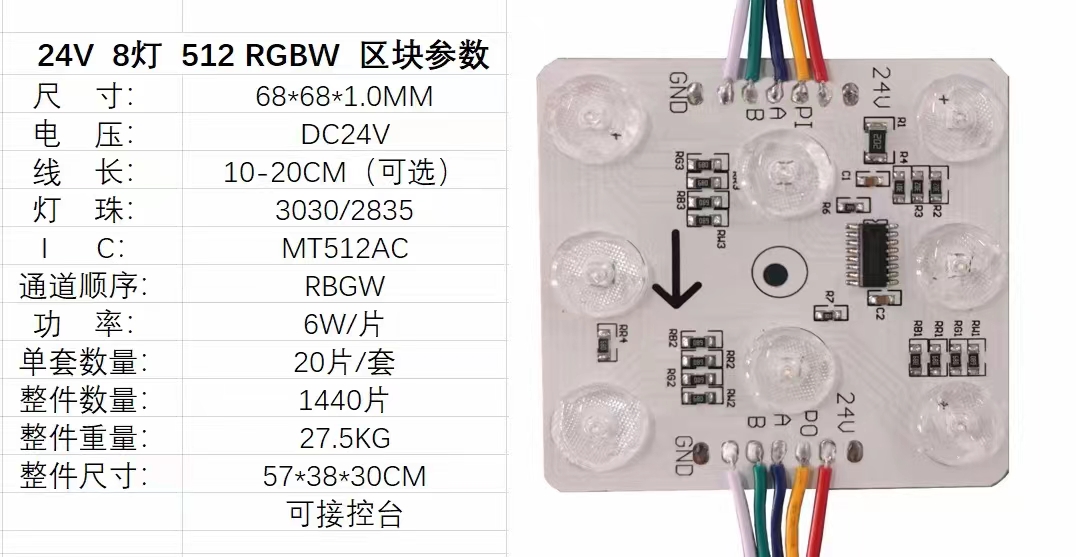

dmx512 with tm512AC with 8 led

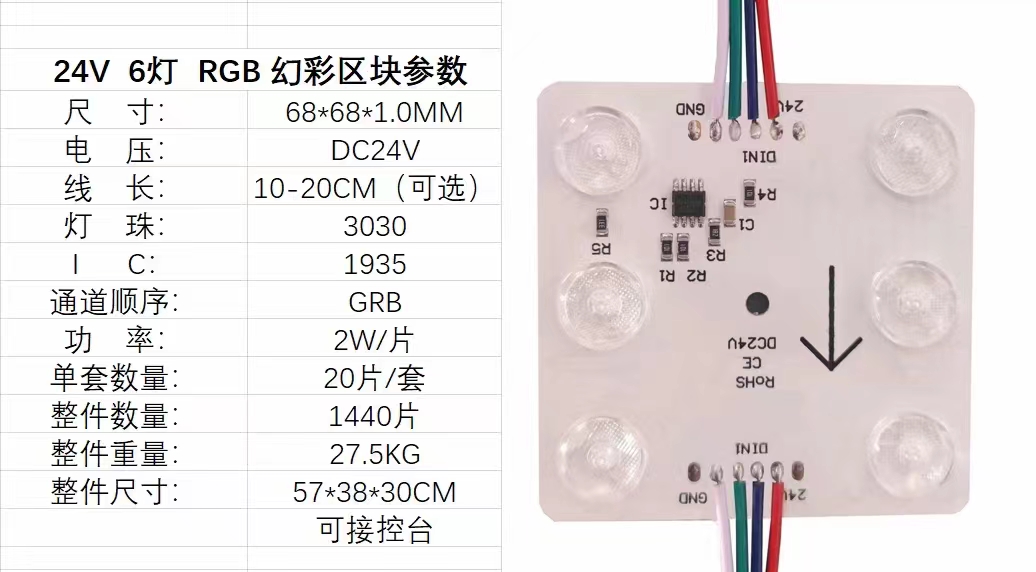

1935/1934 Ic chipset

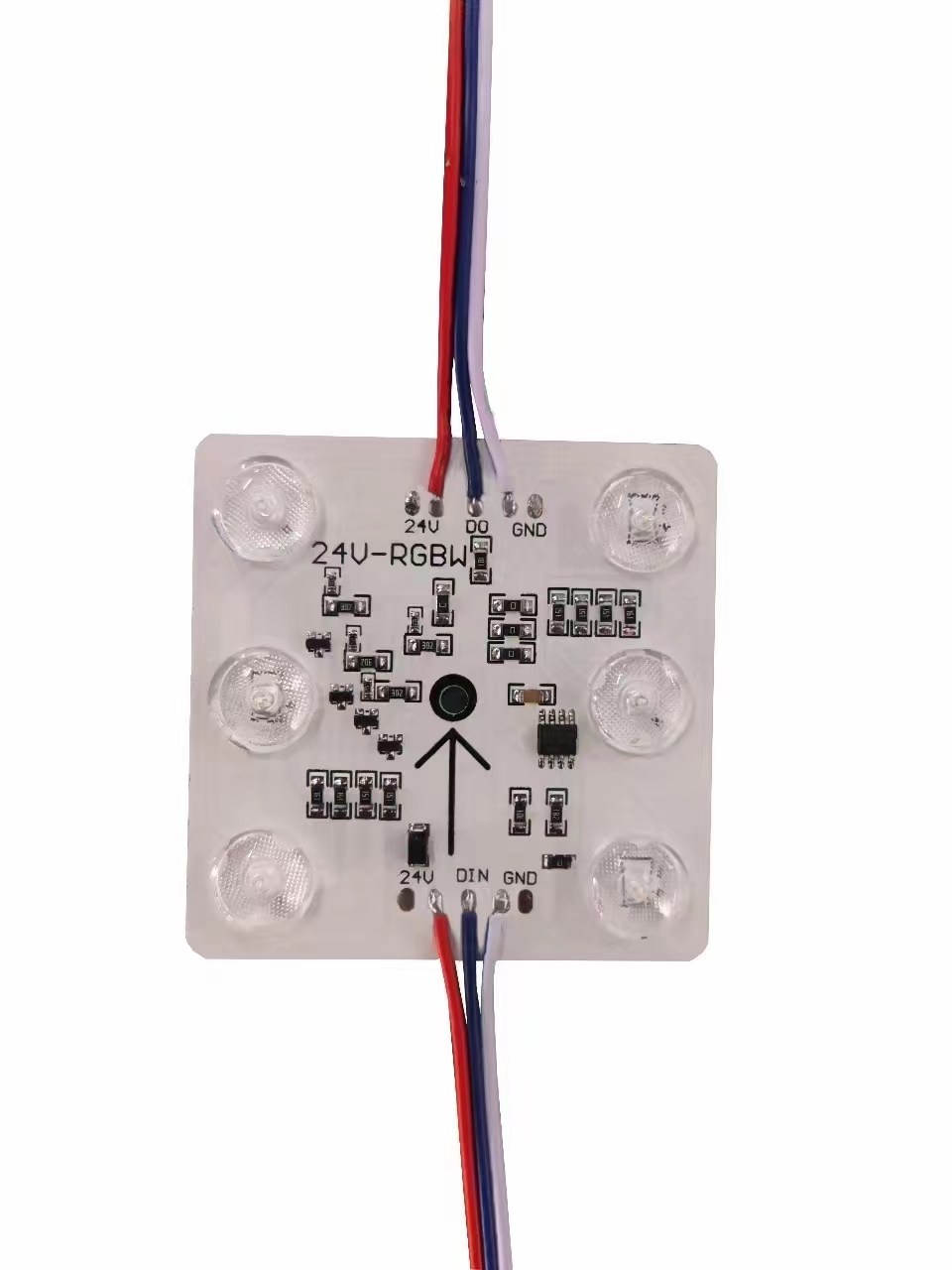

TM1814  RGBW Type

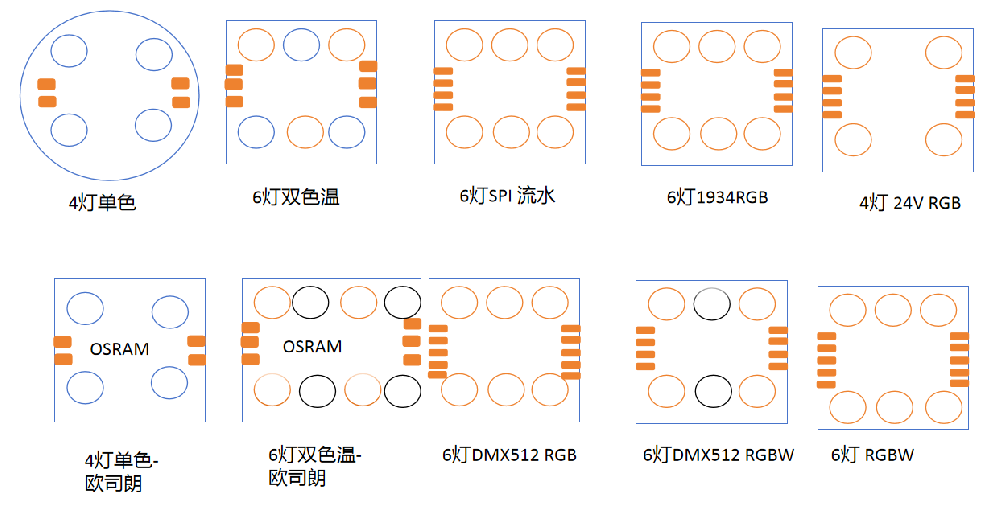

Other type optional

Application ( need to make sure the box deepth more than 15cm to use this led module block)

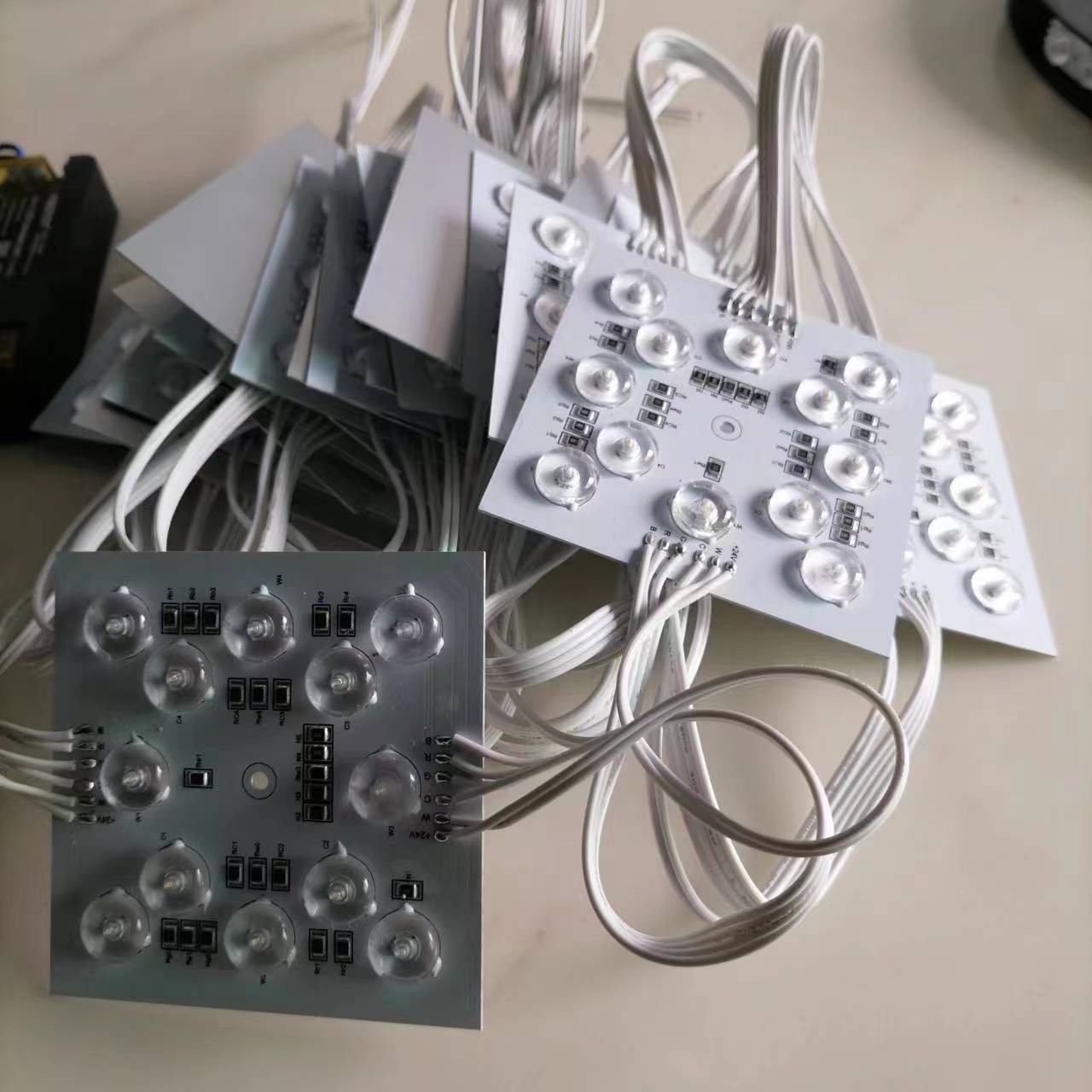

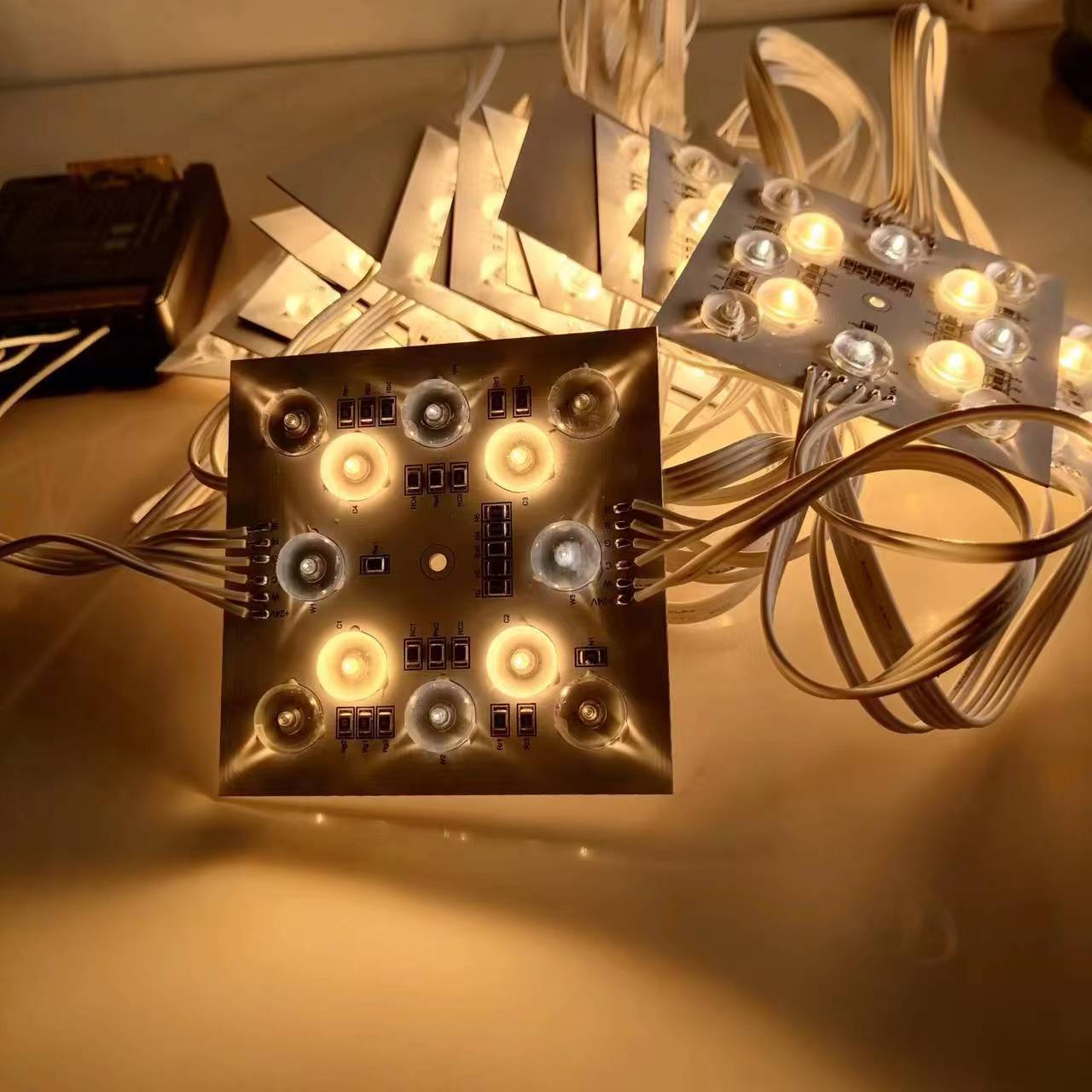

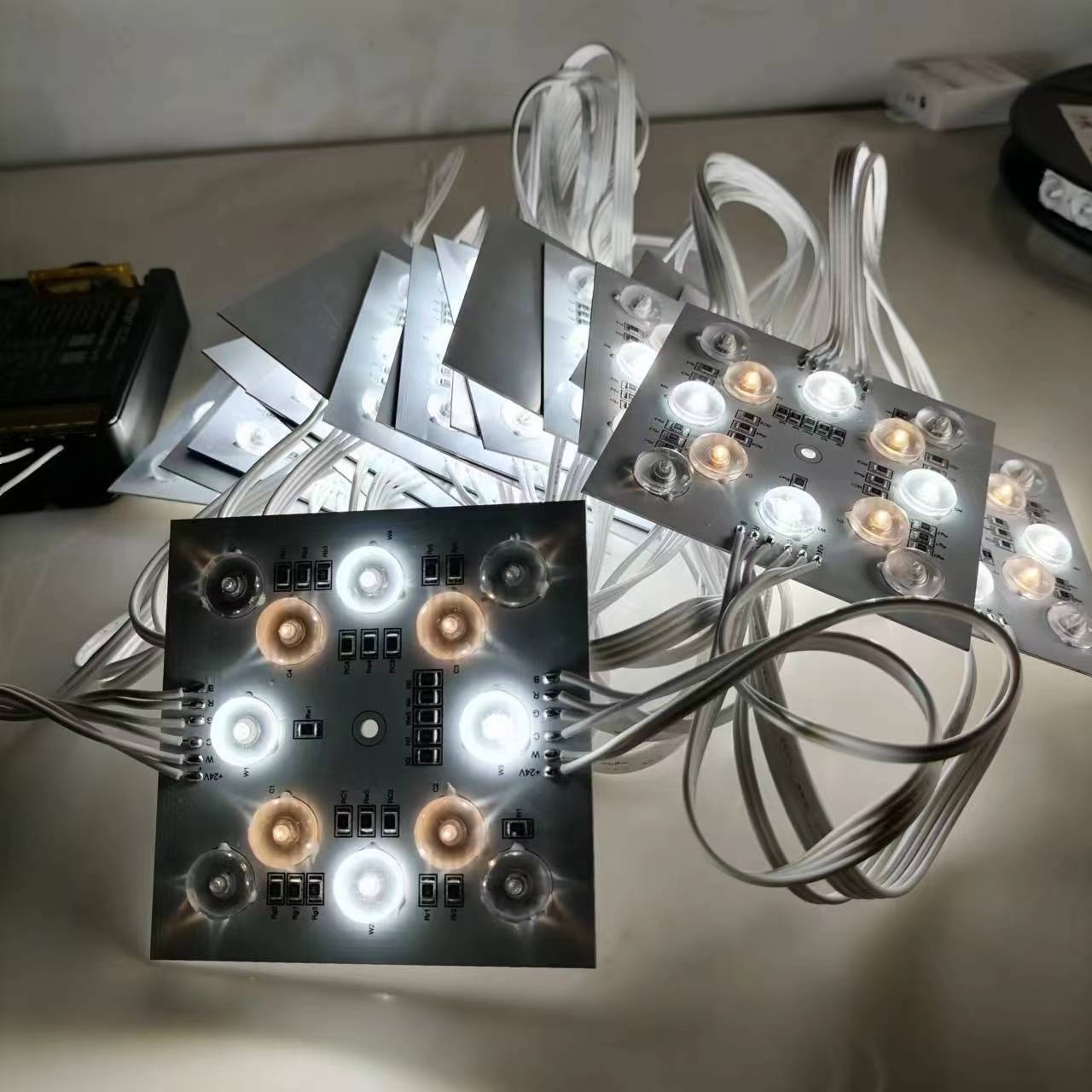

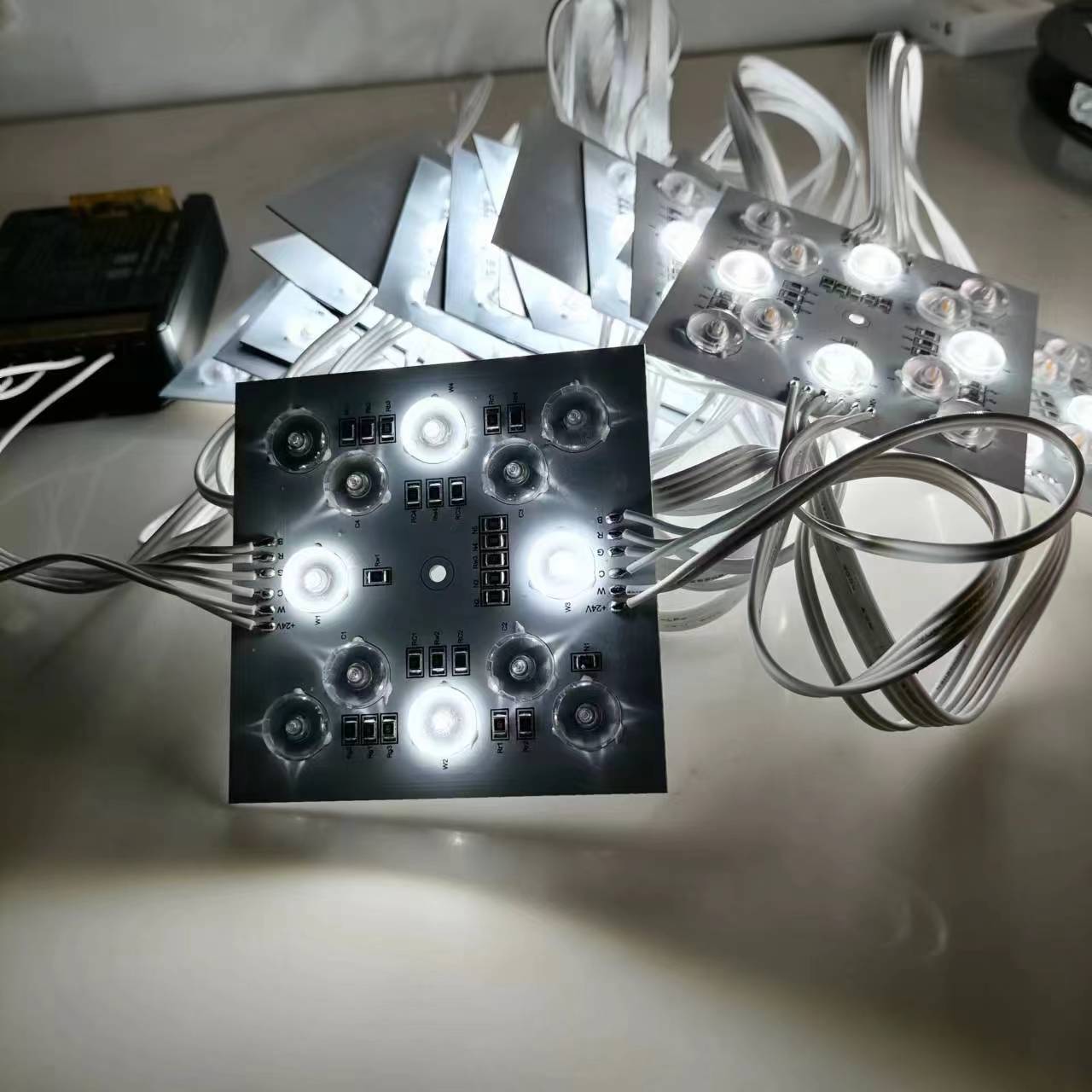

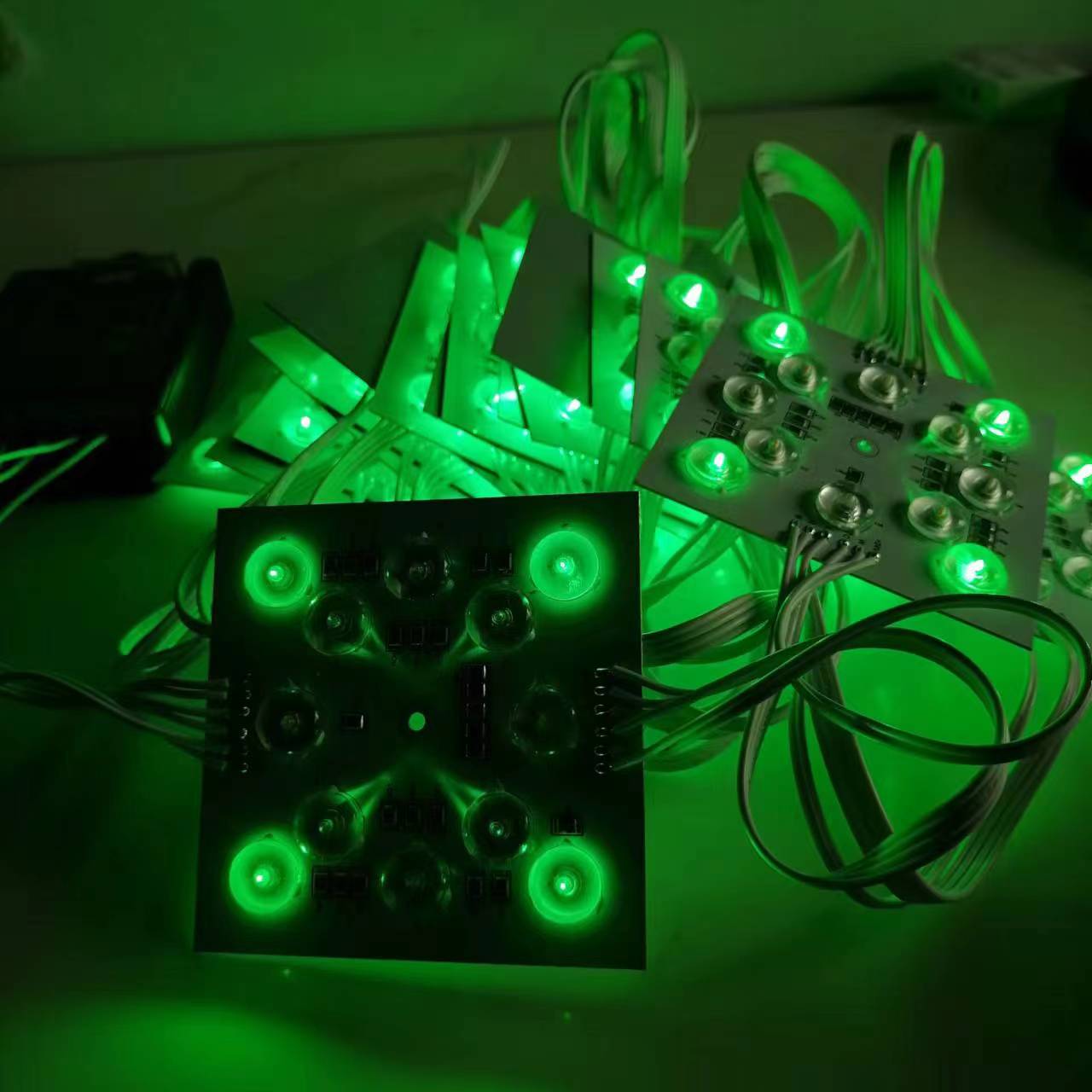

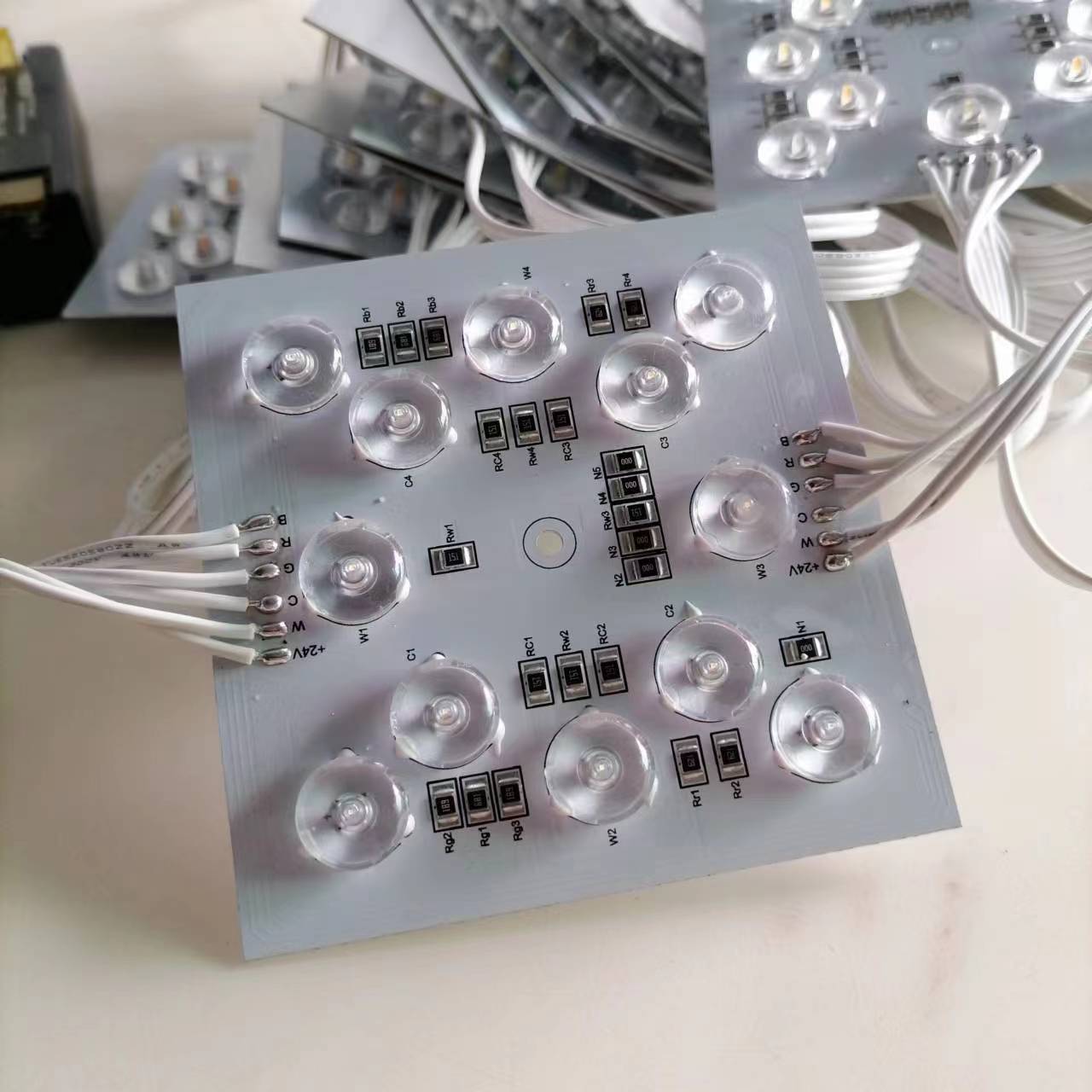

RGBW CCT 7070 led module
