DC12V individually addressable sk6812 5050 RGBW pixel LED Strip 60pixels/m

12vsk6812rgbwpixelledstrip
Products Inquiry

Product Details

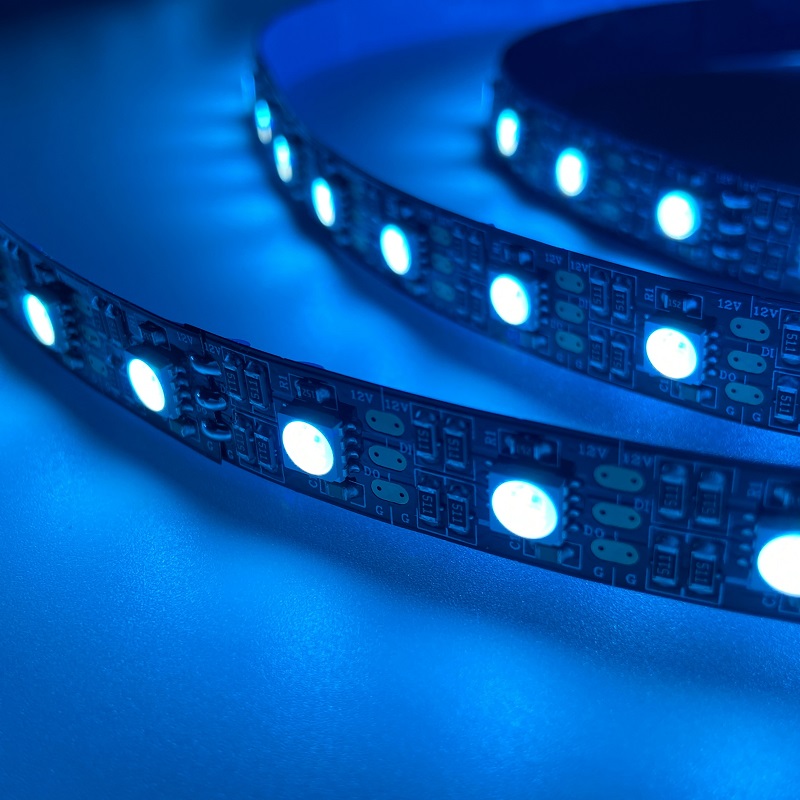

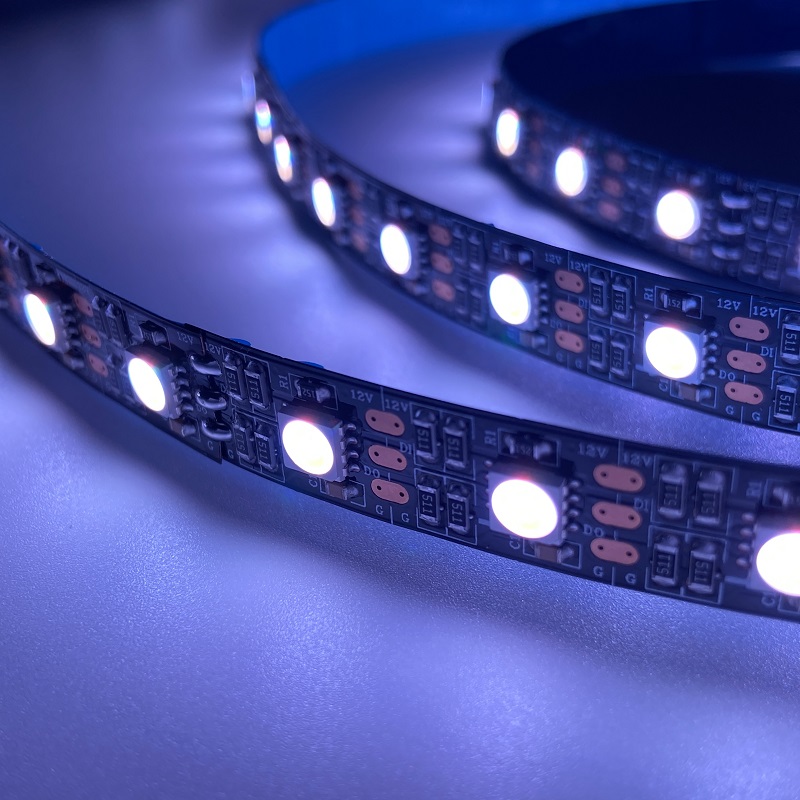

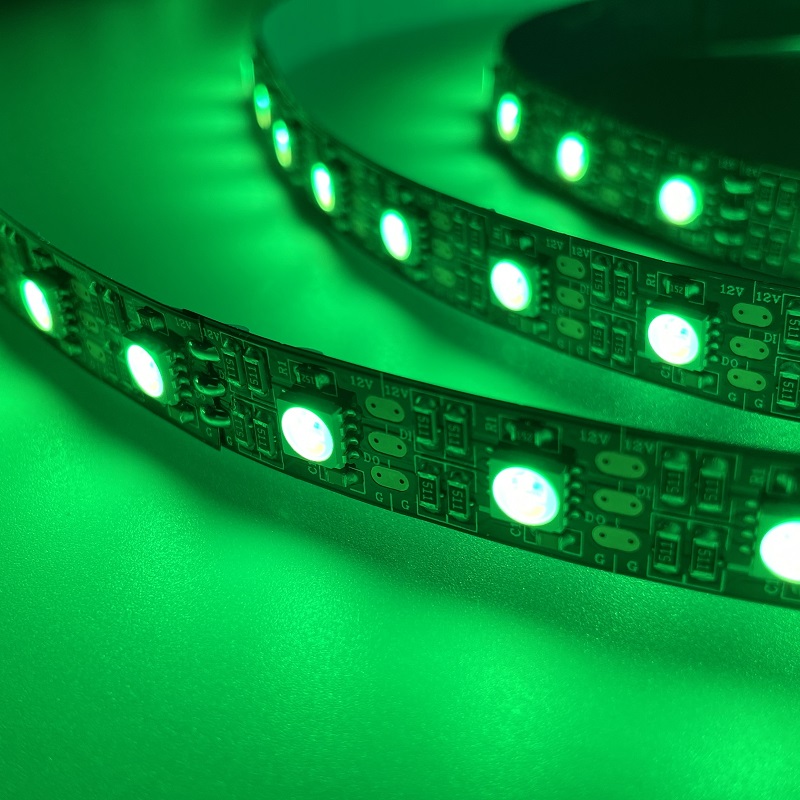

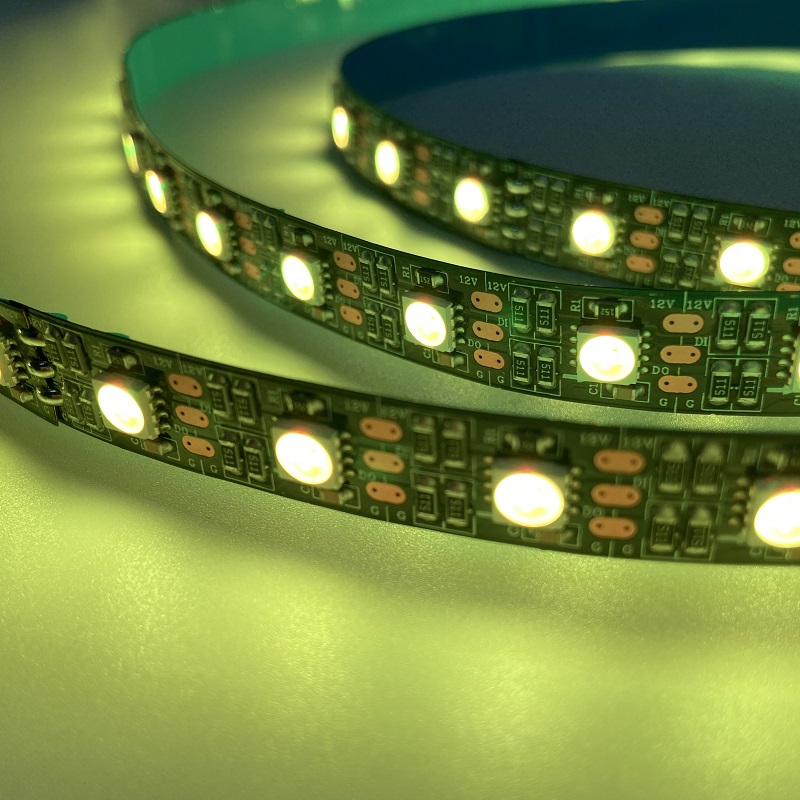

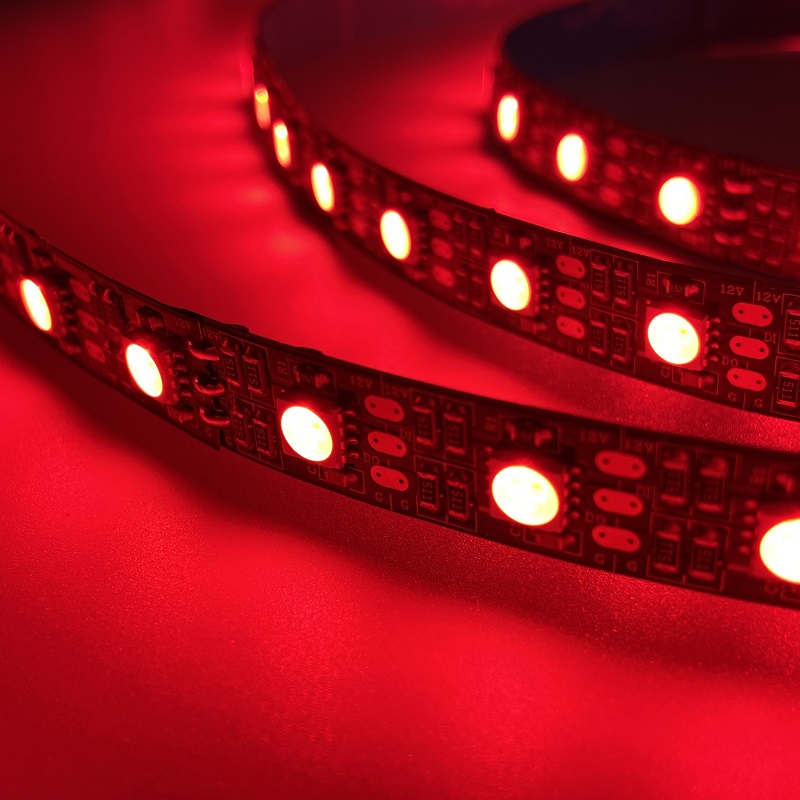

DC12V individually addressable sk6812 5050 RGBW  pixel  LED Strip 60pixels/m

Specification

Led type:  Digital  sk6812 5050 SMD RGBW  LED from opsco

IC type: sk6812
PCB Width:10mm
Led lighting angle: 120°

LED Q'ty: 60led/m 60pixels /m with Black pcb

IP Rating IP20, IP65, IP67, IP68.
Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;
1 LED 1 IC, individual controlled, can be made into high-density high-definition display;

Advantages:

1.Each pixel can be controlled individually(60pixels /m)

Can show any color and Can be used as flexible led display screen to show image and video

2.White PCB and black PCB optional

3.2unce PCB board with double cooper layer(hongqi brand

4.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board 5.

It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

6. Flexible PCB material . ever 1 LEDcan be cut , there is cut lines ever  one led,

7.  60/leds per meter  . 12V low voltage inputted , don’t over 13V , otherwise you will destroy the entire strip .

8. Controller System:SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

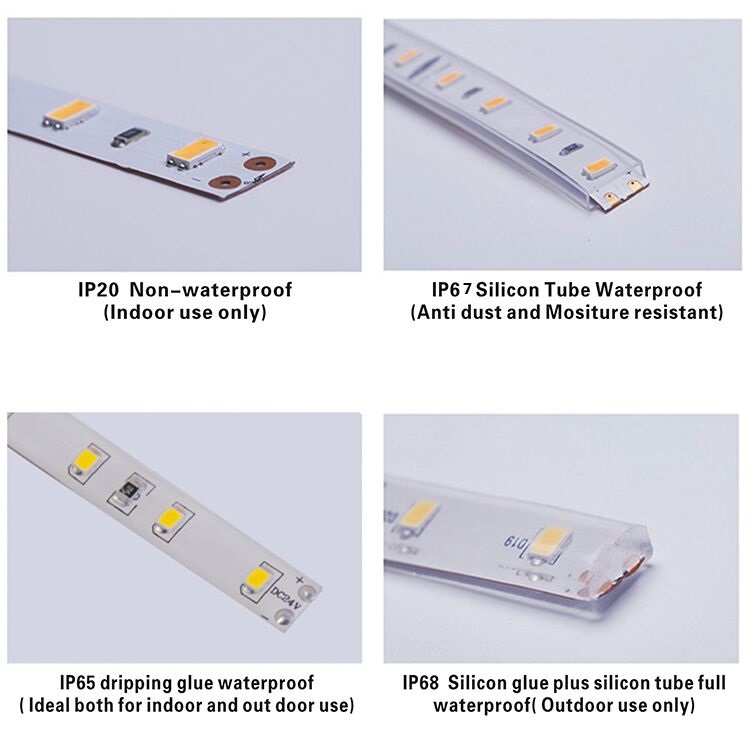

10. waterproof Type

  • IP20 Non-waterproof with 3M sticker on the back,

  • IP65 waterproof is silicone gel or epoxy on the surface,

  • IP67: silicone tube,(silicone sheathing ),

  • IP68: silcone gel(or epoxy) inside silicone tube.

11.Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 7.5kg with nonwaterproof Ip20

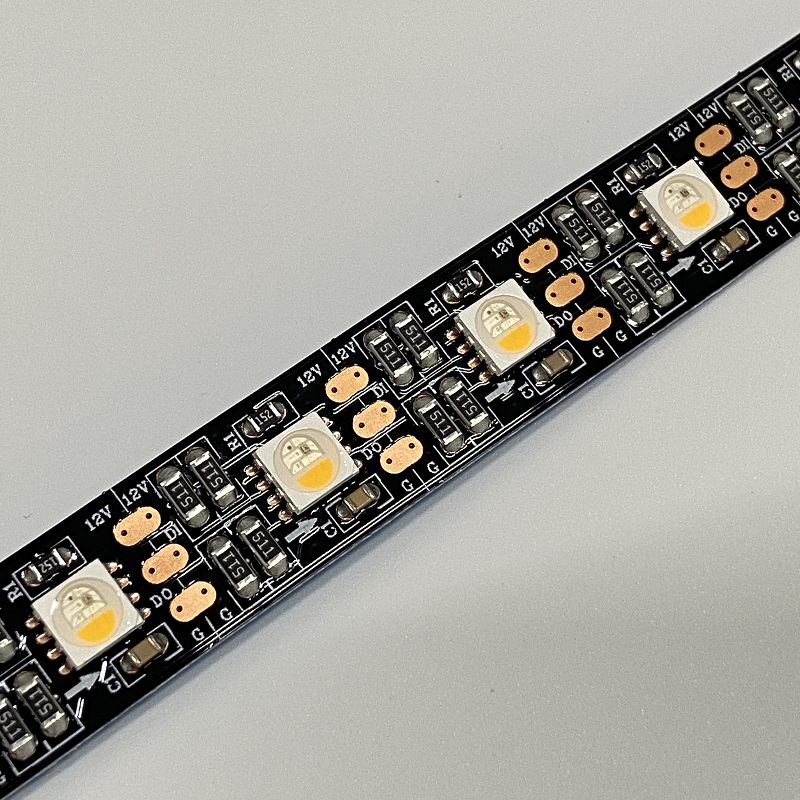

60pixels for black pcb
