DC24V 12V 5V 12mm WS2811 led pixel node,with clear/ colorful/black wire optional (20AWG),IP67rated

DC 24V 12V 5V 12mm WS2811 ucs1903 sm16703 led pixel node,with clear/ colorful/black wire optional (20AWG),IP67rated新推荐DC24V LED全彩外露灯,300个/串没压降,亮度一致,减少接线,从而降低故障率、节省人工成本!Newly recommended DC24V LED full-color exposed lig
Products Inquiry

Product Details

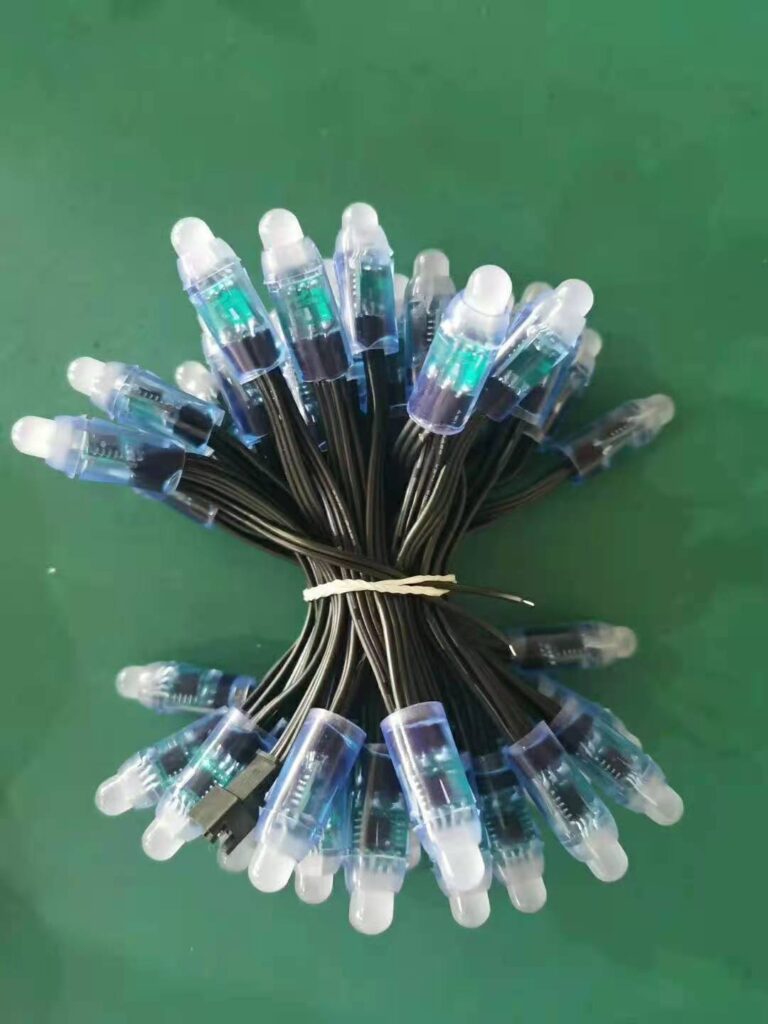

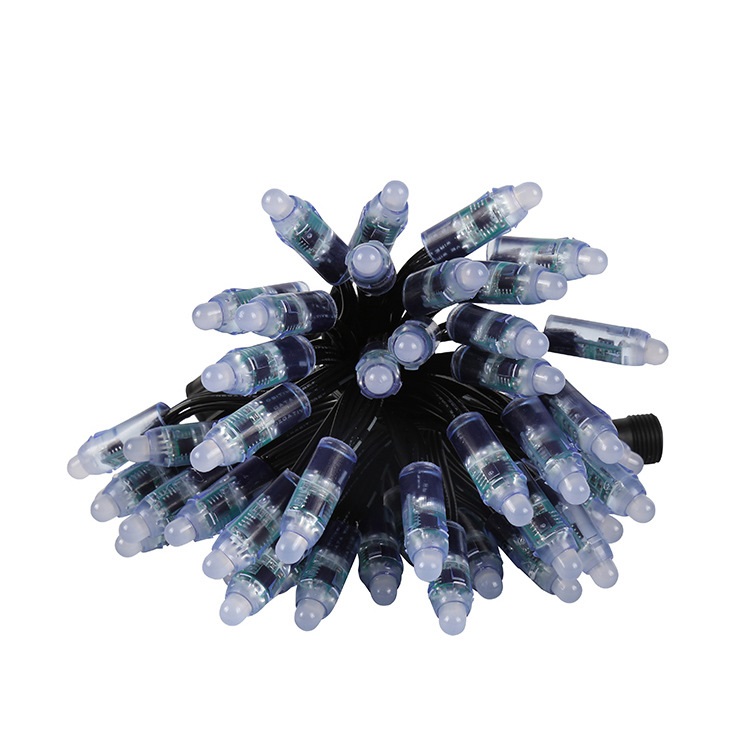

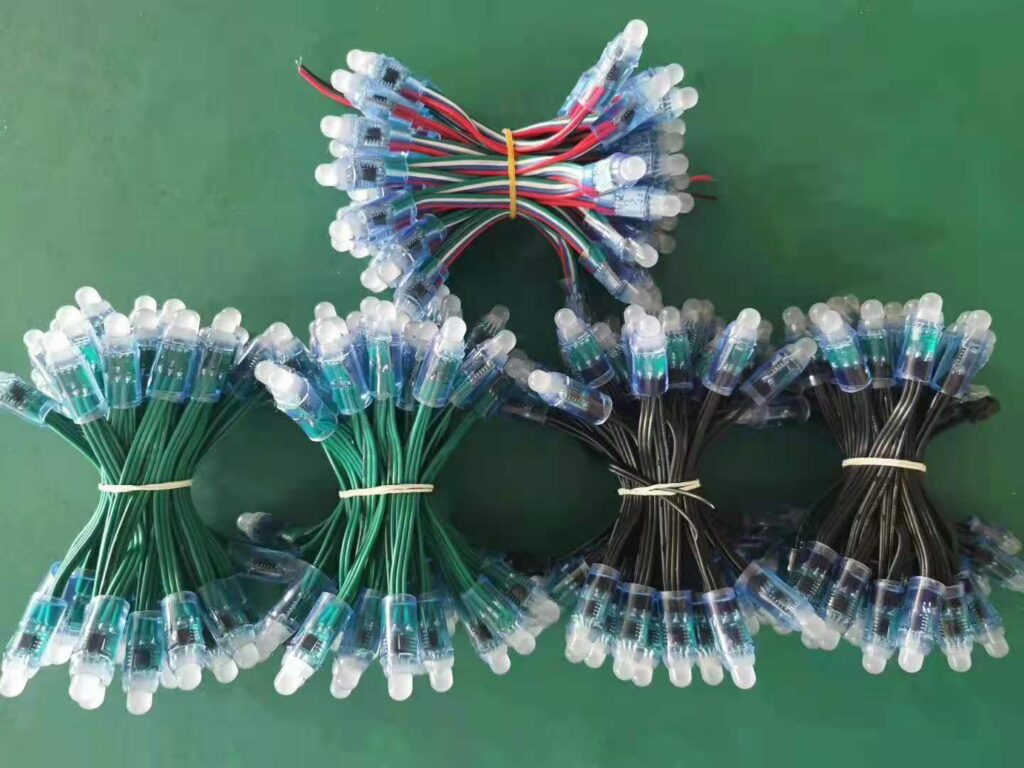

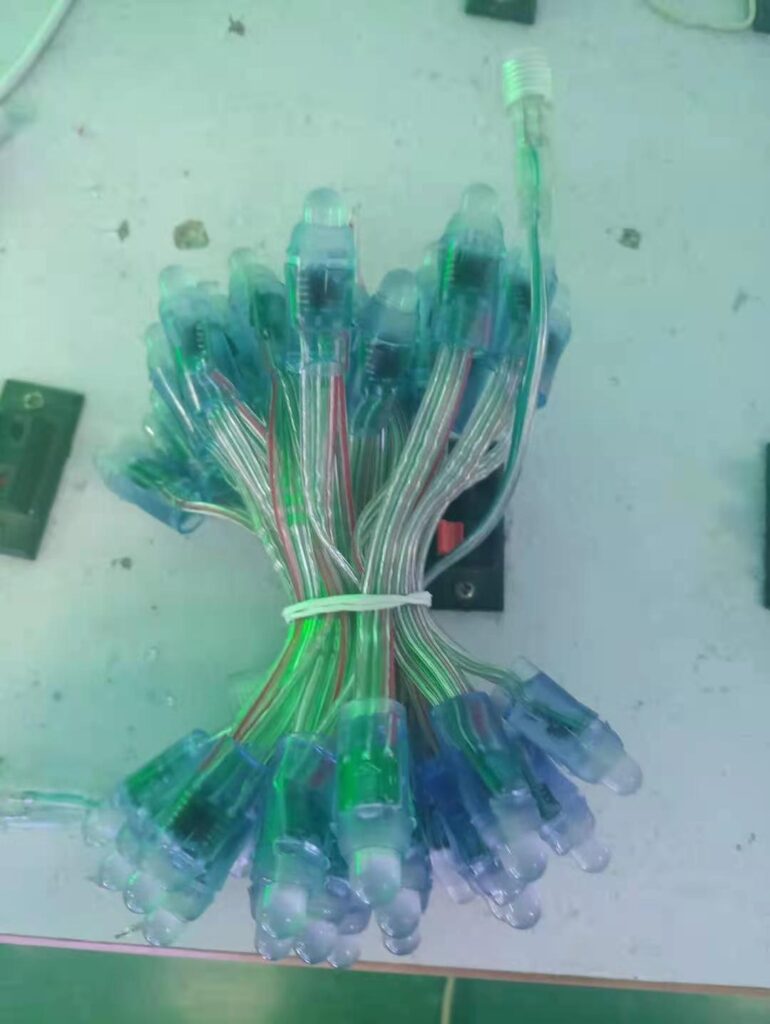

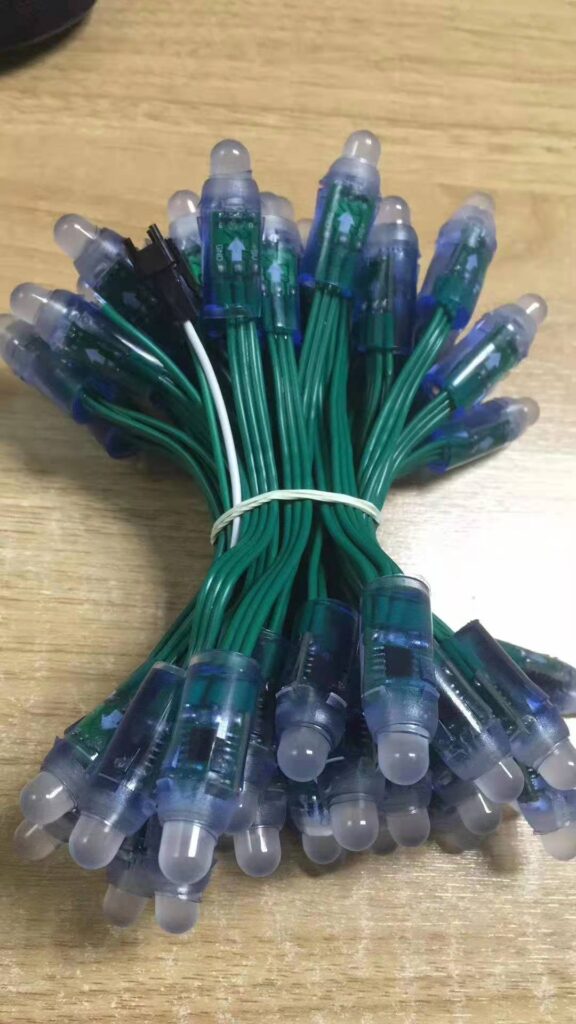

DC 24V 12V  5V  12mm WS2811  ucs1903  sm16703   led pixel node,with clear/ colorful/black wire optional (20AWG),IP67rated

新推荐DC24V  LED全彩外露灯,300个/串没压降,亮度一致,减少接线,从而降低故障率、节省人工成本!

Newly recommended DC24V LED full-color exposed lights, 300 pcs/string, no voltage drop, consistent brightness, reduced wiring, thereby reducing failure rate and saving labor costs!

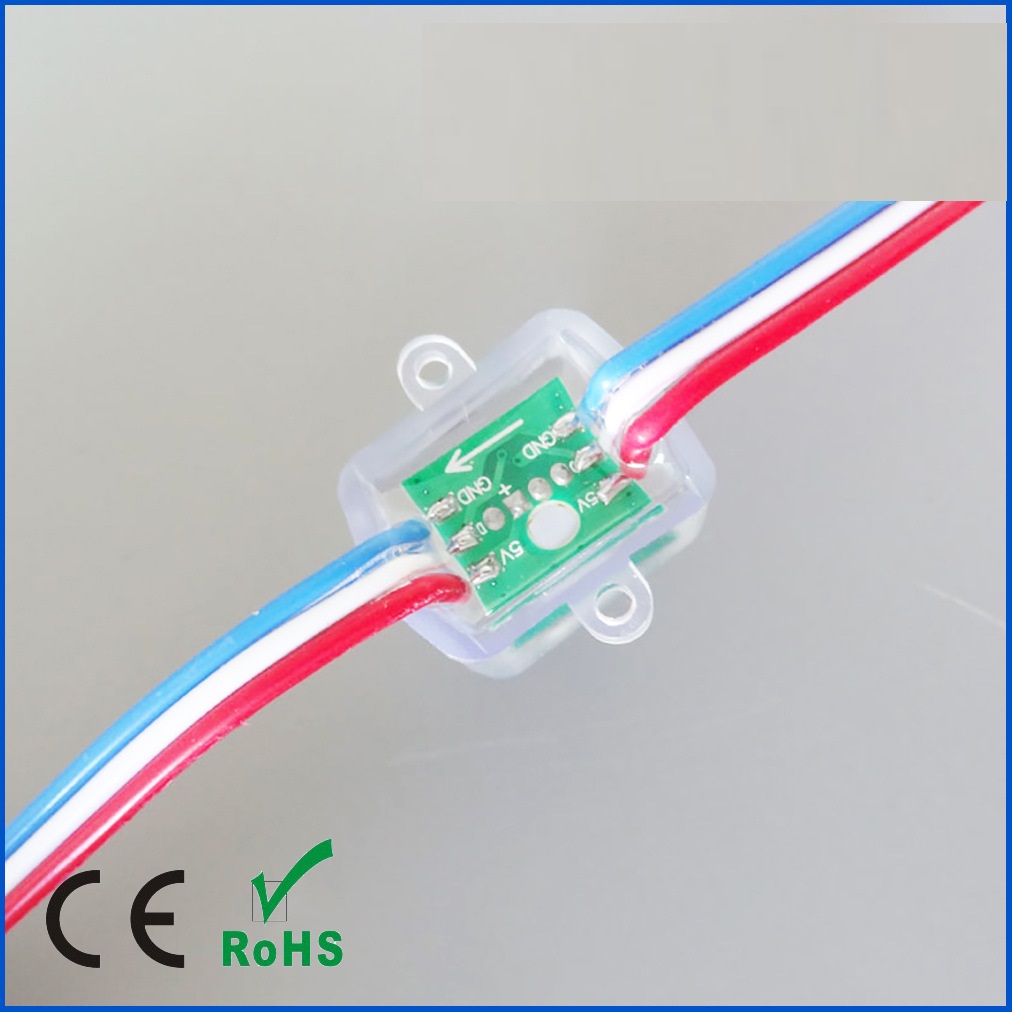

below is smd5050 rgb led chip inside the square pixel led dot with 12v with dual signal with ic1916

Working voltage:            DC5V   Dc12V  24V optional

Working current:             60ma

Working consumption:     0.3W
Working temperature:    40°C- 60

IP grade:                       IP67

Dimension:                    12mm

LED type:                       1pcs  F8 RGB led

LED qty:                        1pcs
Lifespan:                        MTBF>50000h

Viewing angle:                >120

ICt Type: ws2811 / TM1914  dmx512 ,ect  optional


RGB Pixels are digitally-controllable lights you can set to any color, or animate

Each RGB LED and controller chip is molded into a 'dot' of silicone.

The dots are waterproof and rugged.

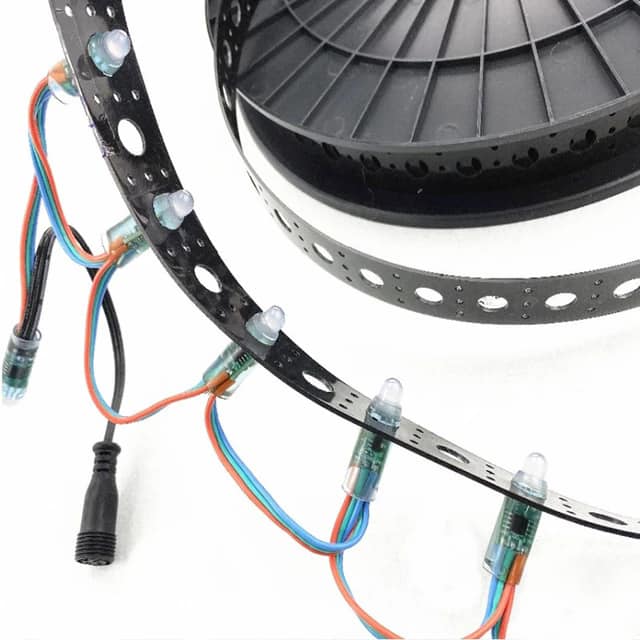

There are four flanges molded in so that you can 'push' them

into a 12mm drill hole in any material up to 1.5mm/0.06" thick

They are typically used to make outdoor signs. Compared to our other 20mm LED dots

these are diffused 8mm LEDs so they are not as bright but they color mix a little nicer.

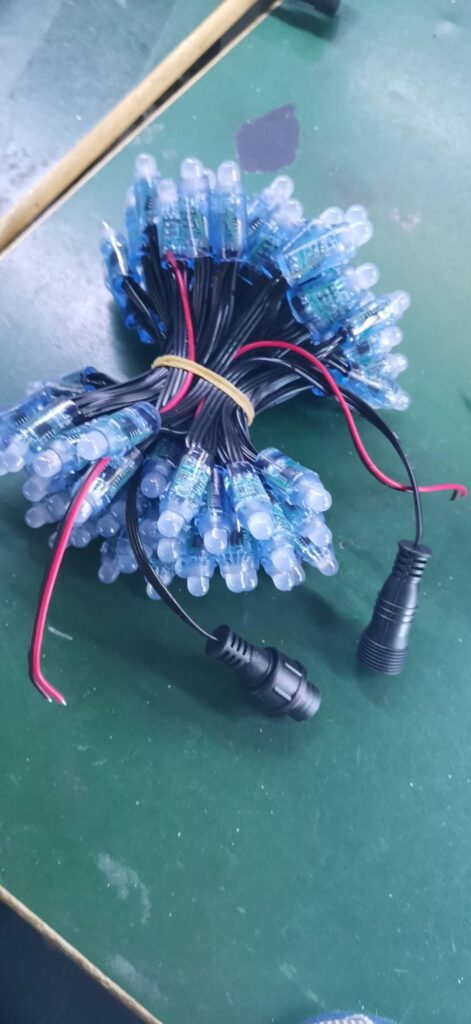

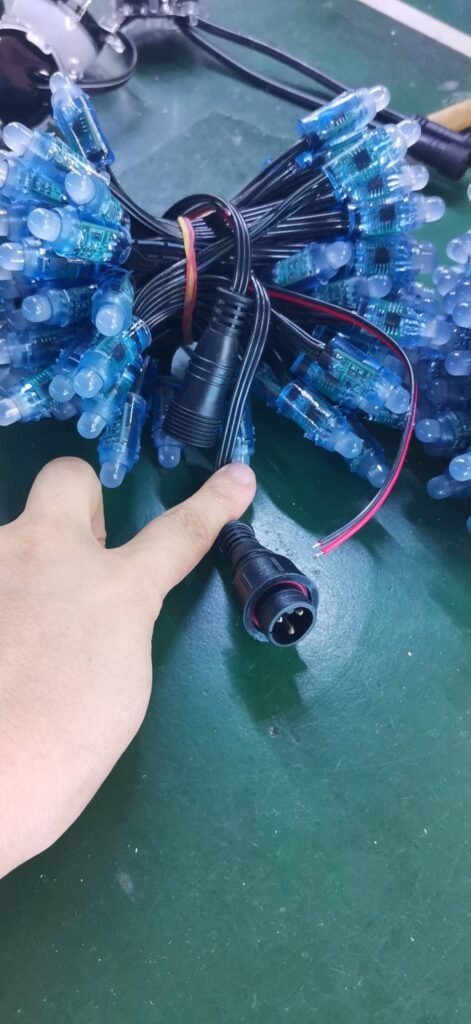

The pixels are connected by a 3-conductor cable. Red is +5V, Yellow is Ground, Green is Data and

Data is shifted down from one pixel to the next so that you can easily

cut the strand or attach more onto the end.

Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15-bit color for 32,768 different shades). The pixels must be clocked by a microcontroller

The pixels use 8mm diffused RGB LEDs

with brightness of about 300 mcd per individual r/g/b LED.

SD controller
Programable by Software
Individually Control
Conformal Coating,PVC glue protection
IP68, Water-proof protection
Easy installation (punching 12mm hole on metal panel)

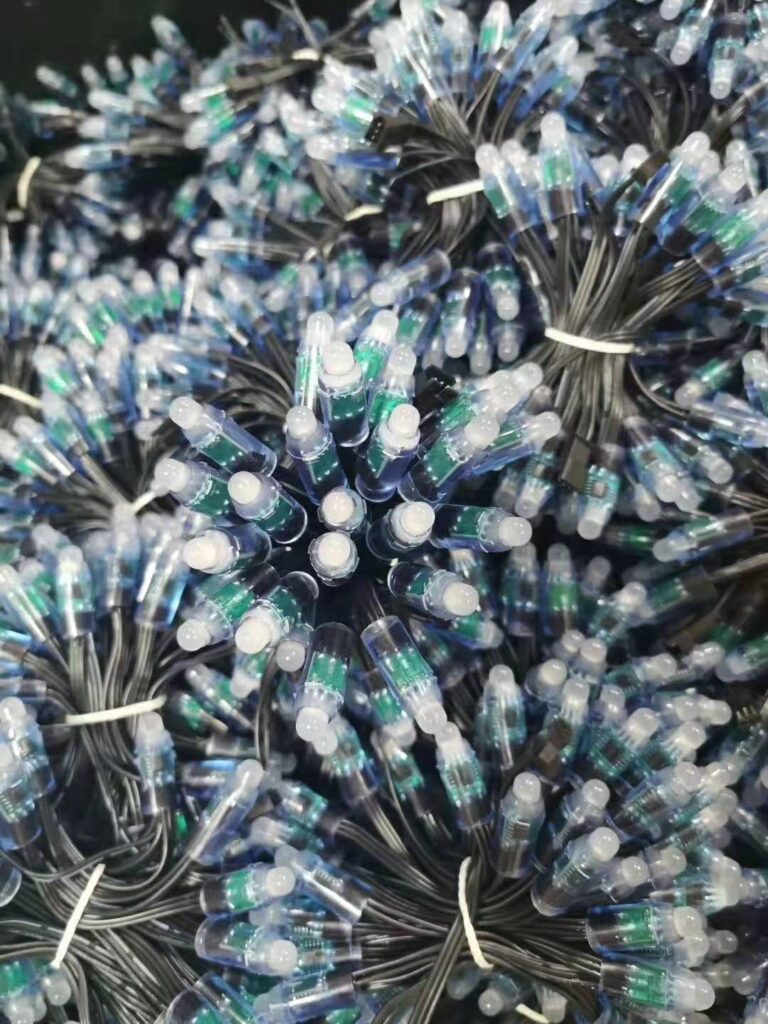

100pcs per set


Meets the general lighting
environment such as:
Outdoor advertising
christmas decoration


take noted the new 12v 12mm pixel led can support 150pcs per string with one power input  is okay
