Dc5V 8mm 4020 side viewing Individually digital full color RGBW 4020 pixel led bar 72pixels/M

Products Inquiry

Product Details

Dc5V 8mm 4020 side viewing Individually digital full color  RGBW 4020 pixel led bar  72pixels/M

the product application


Key specification

Led type:side viwing 4020  SMD LED
IC type: sk6812
PCB Width:8mm (  72leds with 8mm width)

Led lighting angle: 120°
LED Qty:  72leds/m,  (72leds/m ,90leds/m, 144leds/m,60leds/m optional)
IP Rating IP20,Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;
1 LED 1 IC, individual controlled, can be made into high-density high-definition display;


  • SK6812 IC inside the 4020 LED chip.What is better than 020 or 335 side view LEDs, Smart Digital SK6812 side 4020 LED !

  • These Digital sk6812 Side view 4020 RGB pixel led strip 60leds/m is pixel version .

  • These LED strips are fun and glowy, and you can control each sk6812 side 4020 view LED individually.

  • This is Digital sk6812 Side view RGB pixel led strip 144leds/m with bare board or clearing case and white / black flex pcb,

  • we also have digital sk6812 side 4020 RGB led strips with 90 eds/m and 60 leds/m.

  • Pure copper bracket and 99.99% gold wire for WS2815  LED

  • 2OZ FPCB(35um cooper)with double cooper layer2 sides membrane cover the Pcb board.Make sure the copper no drop from the pcb board ,

  • White PCB and black PCB optiona

  • It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

  • Flexible PCB material . ever 1LEDcan be cut , there is cut lines every 16.6mm for 60leds/M

  • 256 Gray scale(8bits)

Controller system:

1.Offline controllers, online controller work with computer,Such as LEDedit,
2.DMX console ,
3.Madrix software & map and any other artnet software.
4.Also the singlechip,such as the Arduino.


Waterproof  Type

IP20 non waterproof:3M sticker on the back, easy installation.
IP67 waterproof: Silicone tube, equipped with card buckle and screw.


Widely used for decoration use, hotels, clubs, shopping malls,night bar, disco
Architectural decorative lighting, boutique atmosphere lighting
Extensively applied in Backlighting, concealed lighting, channel letter lighting
Emergency & security lighting, advertisement sign lighting
Decorative lights for holiday, event, show exhibition
Applicable for automobile and bicycle decoration, border or contour lighting

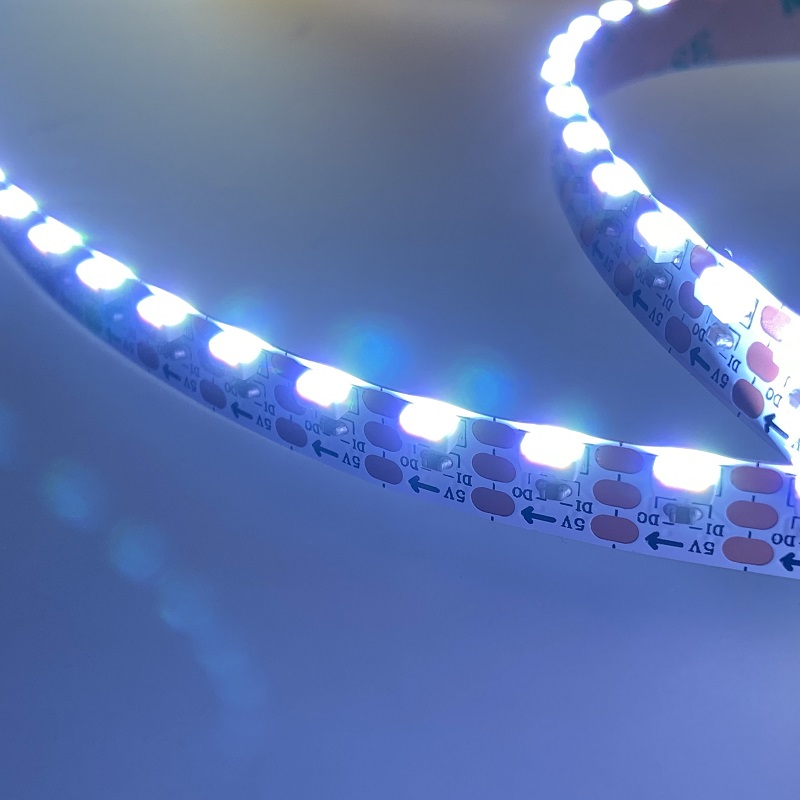

Flexible type optional (60led 72led 144 led per meter opitonal)
