DC12 Narrow 4mm width ws2815 dual signal 2020 RGB Pixel led tape 200 led per meter

Products Inquiry

Product Details

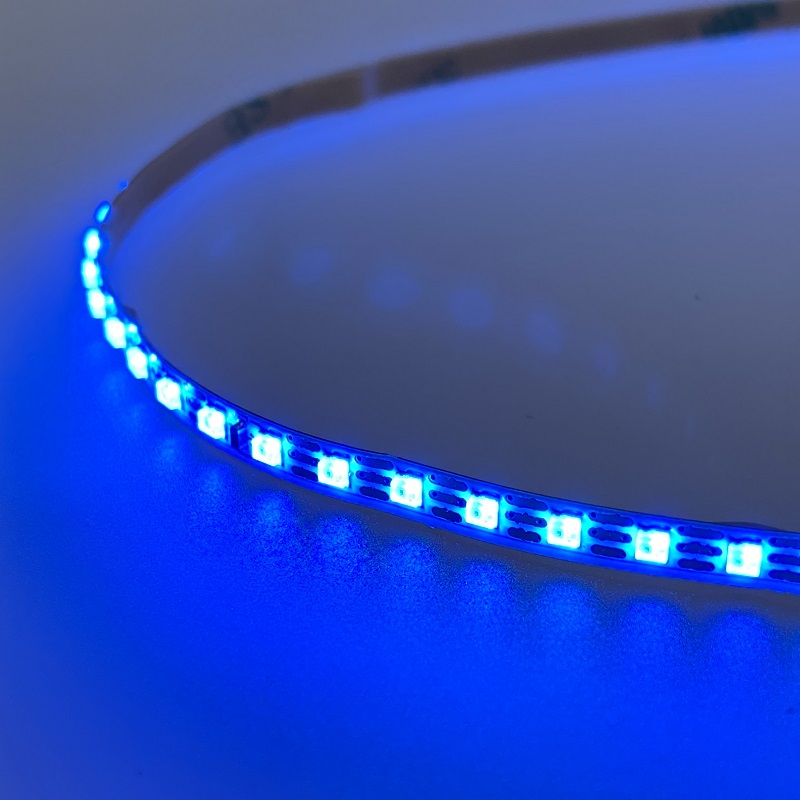

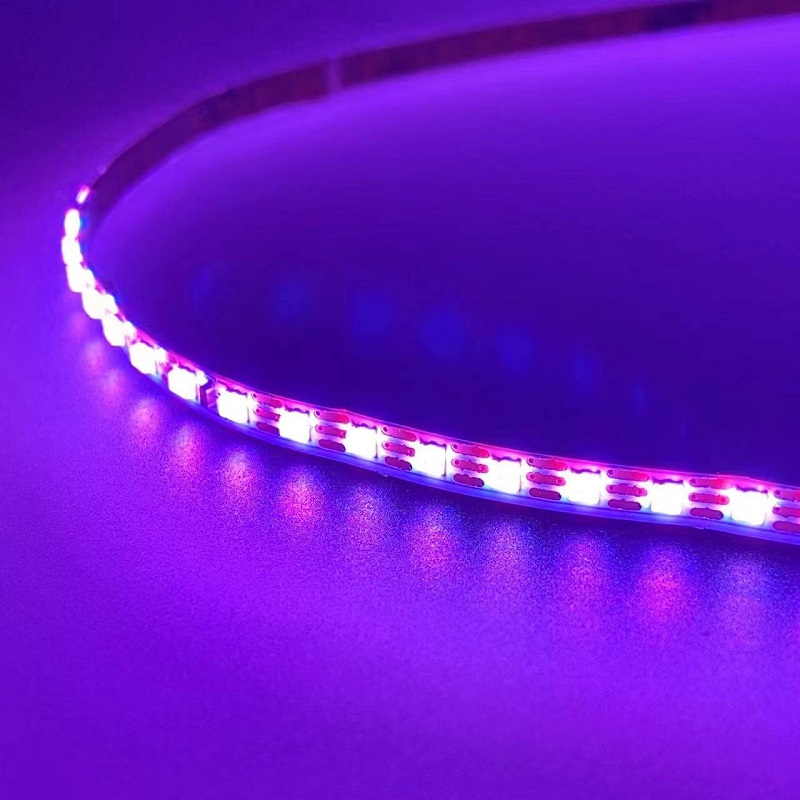

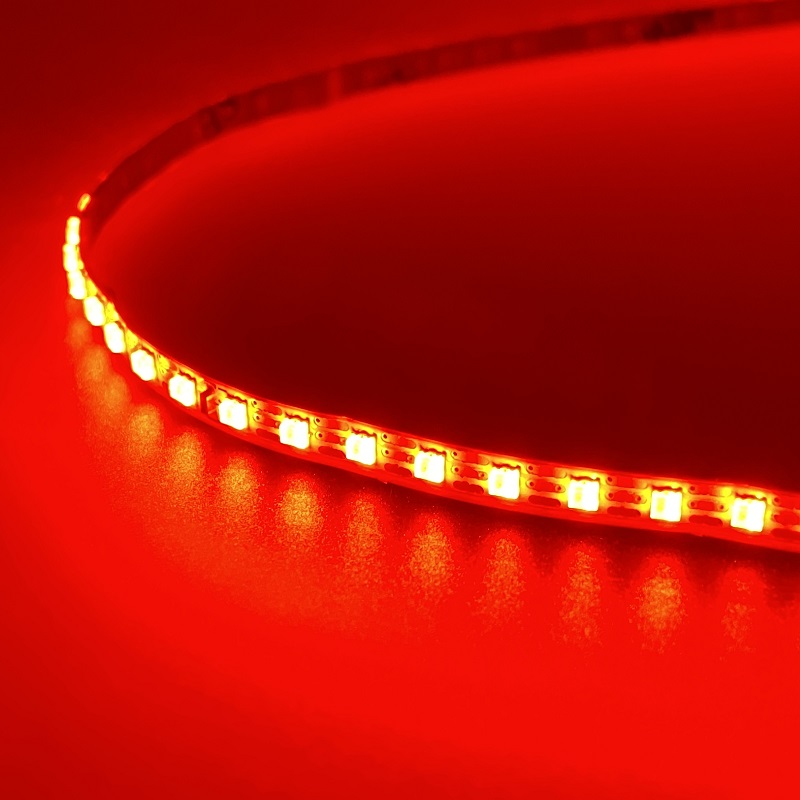

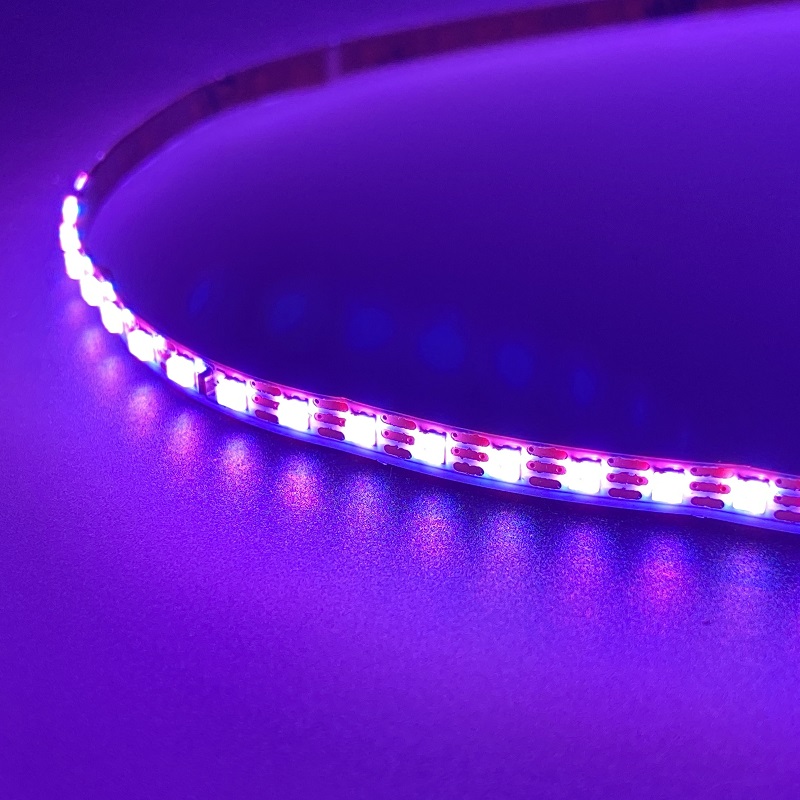

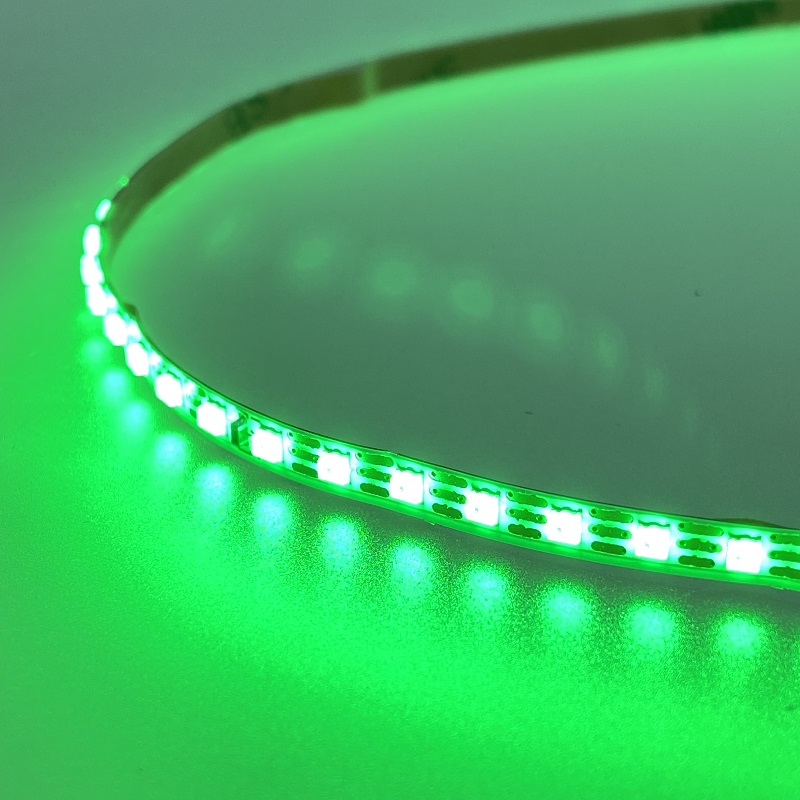

DC12 Narrow 4mm width ws2815 dual signal 2020 RGB Pixel led tape 200 led per meter

Key specification

Led type:RGB 2020  SMD LED
IC type: ws2815
PCB Width:4mm
Led lighting angle: 120°
LED Qty: 200leds per meter
IP Rating IP20, IP65, IP67, IP68.

Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;
1 LED 1 IC, individual controlled, can be made into high-density high-definition display;

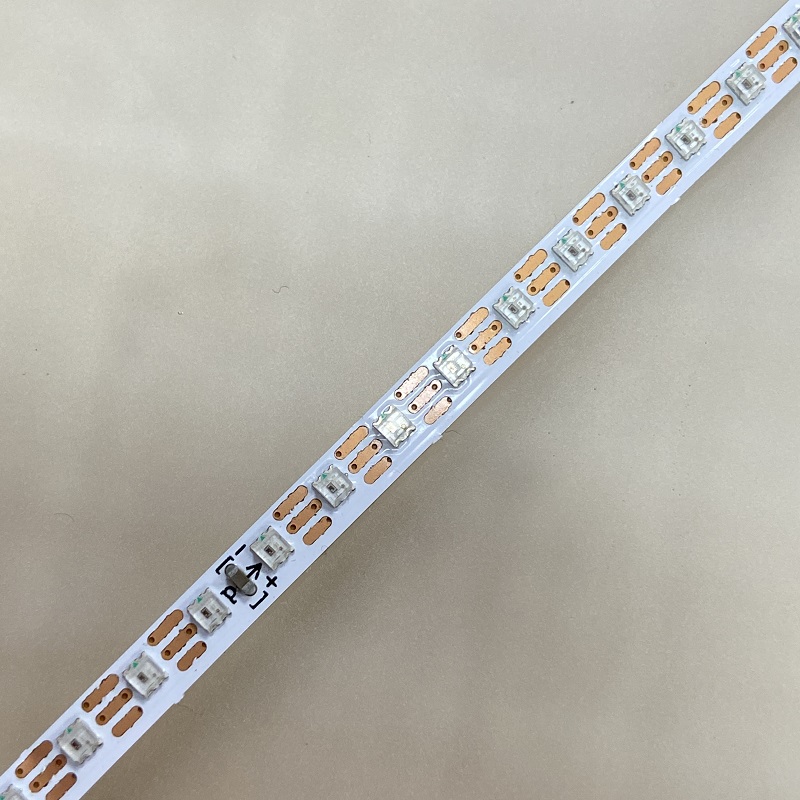

  • Narrow 4mm width, used well for thin Narrow,

  • IC chipset built-in  2020 RGB led lamp,

  • Pure copper bracket and 99.99% gold wire for  2020 RGB LED

  • 2OZ FPCB(35um cooper)with double cooper layer2 sides membrane cover the PFCB.Make sure the copper no drop from the pcb board ,

  • White PCB and black PCB optiona

  • It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

  • Flexible PCB material . ever 1LEDcan be cut ,

  • 256 Gray scale(8bits)

Controller system:

1.Offline controllers, online controller work with computer,Such as LEDedit,ledstudio,ect
2.DMX console ,
3.Art net led controller ,support Madrix software & map and any other artnet software.
4.Also the singlechip,such as the Arduino.


Waterproof  Type

IP20 non waterproof:3M sticker on the back, easy installation.
IP65 waterproof: Silcone gel or epoxy on the surface,3M sticker on the back.
IP67 waterproof: Silicone tube, equipped with card buckle and screw.
IP68 waterproof: Silicone gel or epoxy inside silicone tube,equipped with card buckle and screw.


Widely used for decoration use, hotels, clubs, shopping malls,night bar, disco
Architectural decorative lighting, boutique atmosphere lighting
Extensively applied in Backlighting, concealed lighting, channel letter lighting
Emergency & security lighting, advertisement sign lighting
Decorative lights for holiday, event, show exhibition
Applicable for automobile and bicycle decoration, border or contour lighting



there is the small led controller used for the  car ambient light


There is other  Type optional  with 3 led per cut ,but each led is one pixel .

There are  apa102 2020 pixel led tape 400mm long with 128 pixels optional
