Product Details

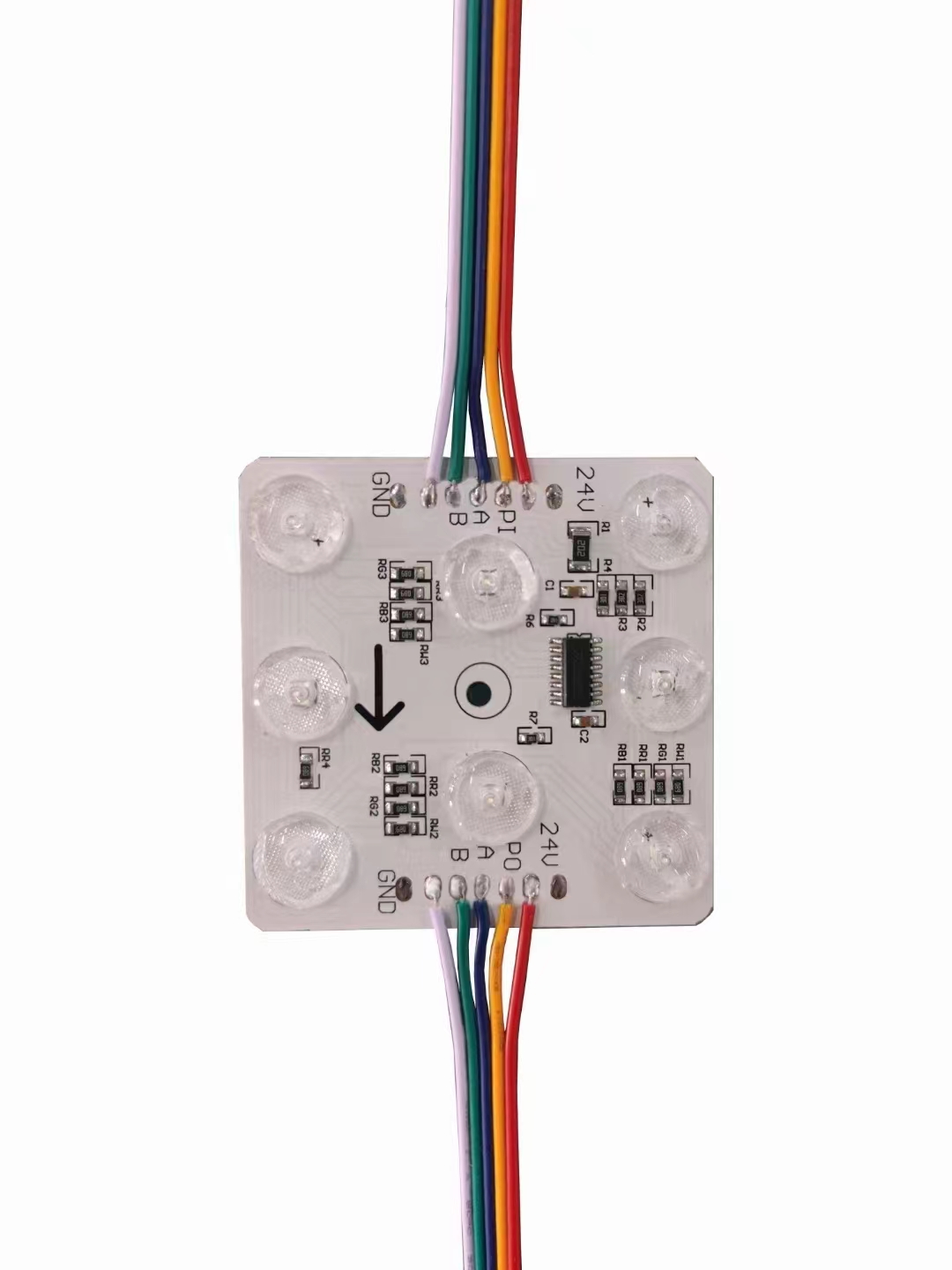

Diffuse reflection dmx LED module illumination block light





Product Parameter

    Item

Full color Digitl led block chain module for the soft film ceiling

    Voltage     24V
    LED Type     3030 RGB
    LED Qty/Module 6led / 8 led optional
    Size     L 70mm* W 70 mm
    LED Modules/String     20 modules/string
    Housing Body     aluminium
    Power     6W/PCS
    IP     IP 20
  color   RGBW addressable  optional
    connector   5pin JST female and male connector

Description

These module extremly for backlighting like Channel letters application.
Each module sticked a 3M tape on back side of case it's chained by 20pcs.
You can cut down and every module addressable ,but watch the correct.Signal in and out put direction
The whole module covered by PVC injection coating  and it's IP65 rated ,but the JST.
Connectors on start and end of string it's IP20 (support customization).

Control IC included, supporting numerous color-change effects.
Controlled by SD controller,Arduino,DMX512,Artnet.
Rigid white PCB, 24V 12V low voltage input.
Every 1 Leds linear separable, custom-length available.
Eco-green light, no UV, IR.
Extremely long lifespan &lower power


Below diffuse reflection led module optional


led block module.png


TM1814 RGBW type

TM1934 dual signal RGB type


1916 ic with dual signal also

1916 24v led block light (1).jpg

waterproof Type optional


Other  SPI type optional

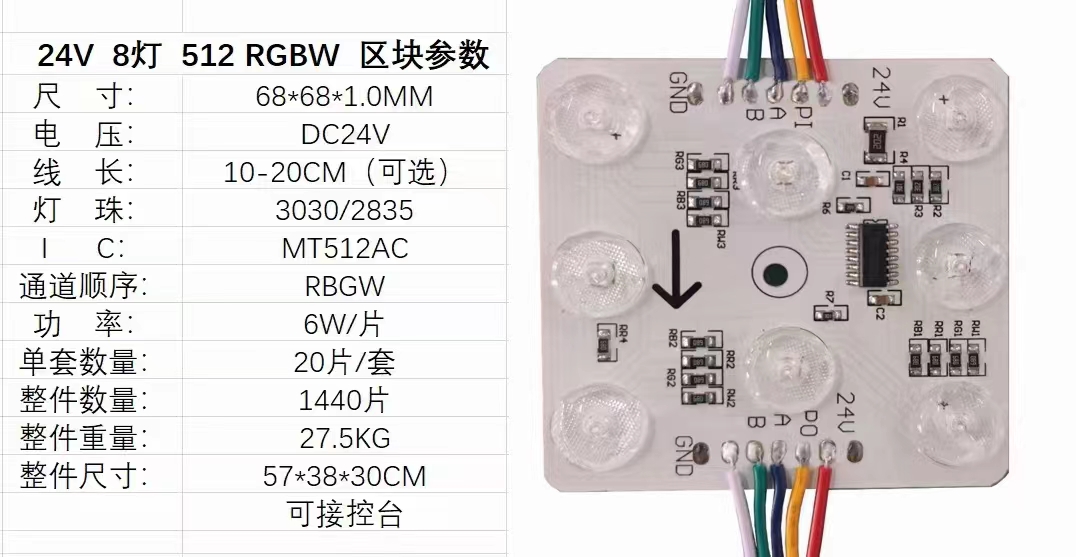

Dmx512 type with 6led optional

rgbw dmx512 led module block.jpg




Other type optional


Application ( need to make sure the box deepth more than 15cm to use this led module block)


RGBW CCT 7070 led module
