sk6812 ws2812B RGB 5050 pixel LED Strip Dc5V 30 60 74 96 144 pixels per meter

sk6812 ws2812B RGB 5050   pixel LED Strip Dc5V 30 60 74 96 144 pixels per meter

below 60pixels is best seller --which we have a lot in stock

RL-STR-sk6812-5050RGB-60-5V.pdf

Advantages:

1.PWM refresh rate: 800kHz, transfer speed 800k bps

2. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3.Red copper bracket and pure gold wire  RGBW led lamp,

4.High brightness LED lamp with luminous intensity(mcd)

R:700-1000 G:1500-2200 B:700-1000,

CCT for white optional from 2500K-12000K

5 hongqi brand 2OZ PFCB(35um cooper)with double cooper layer,

6. 2 sides membrane cover the PFCB. make sure the copper no drop from the pcb board ,

7. 30/60M . 5V low voltage inputted , don’t over 6V , otherwise you will destroy the entire strip .

8. Controller System：SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

10.Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

Basis specification

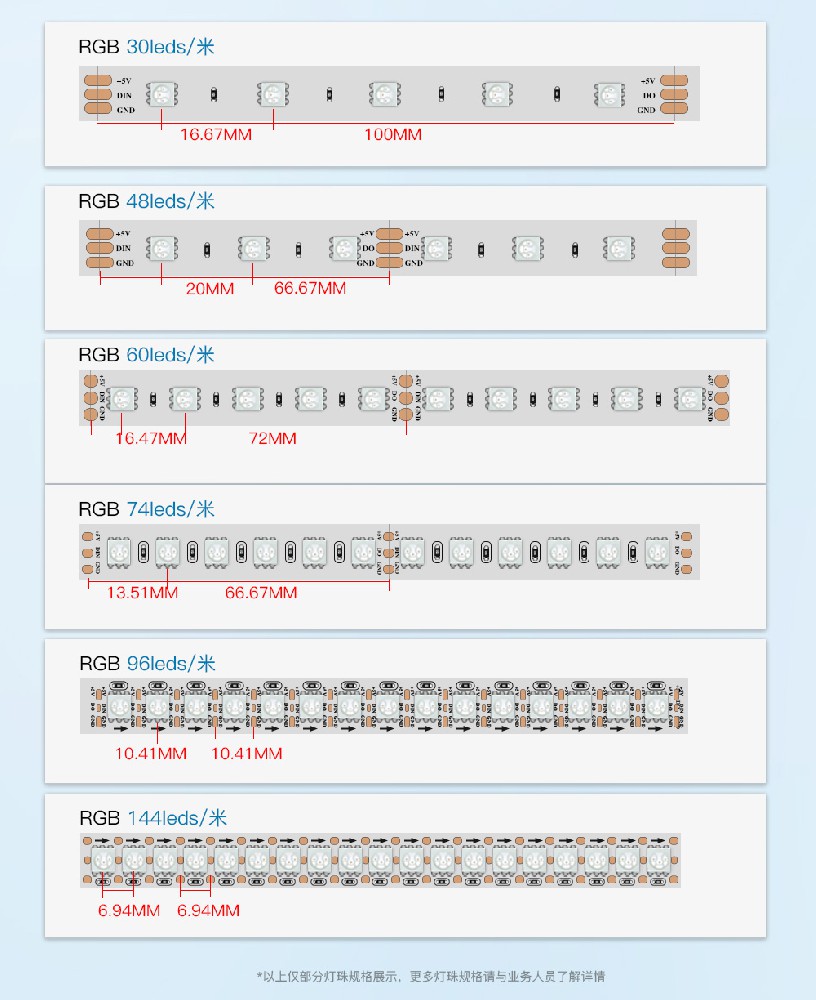

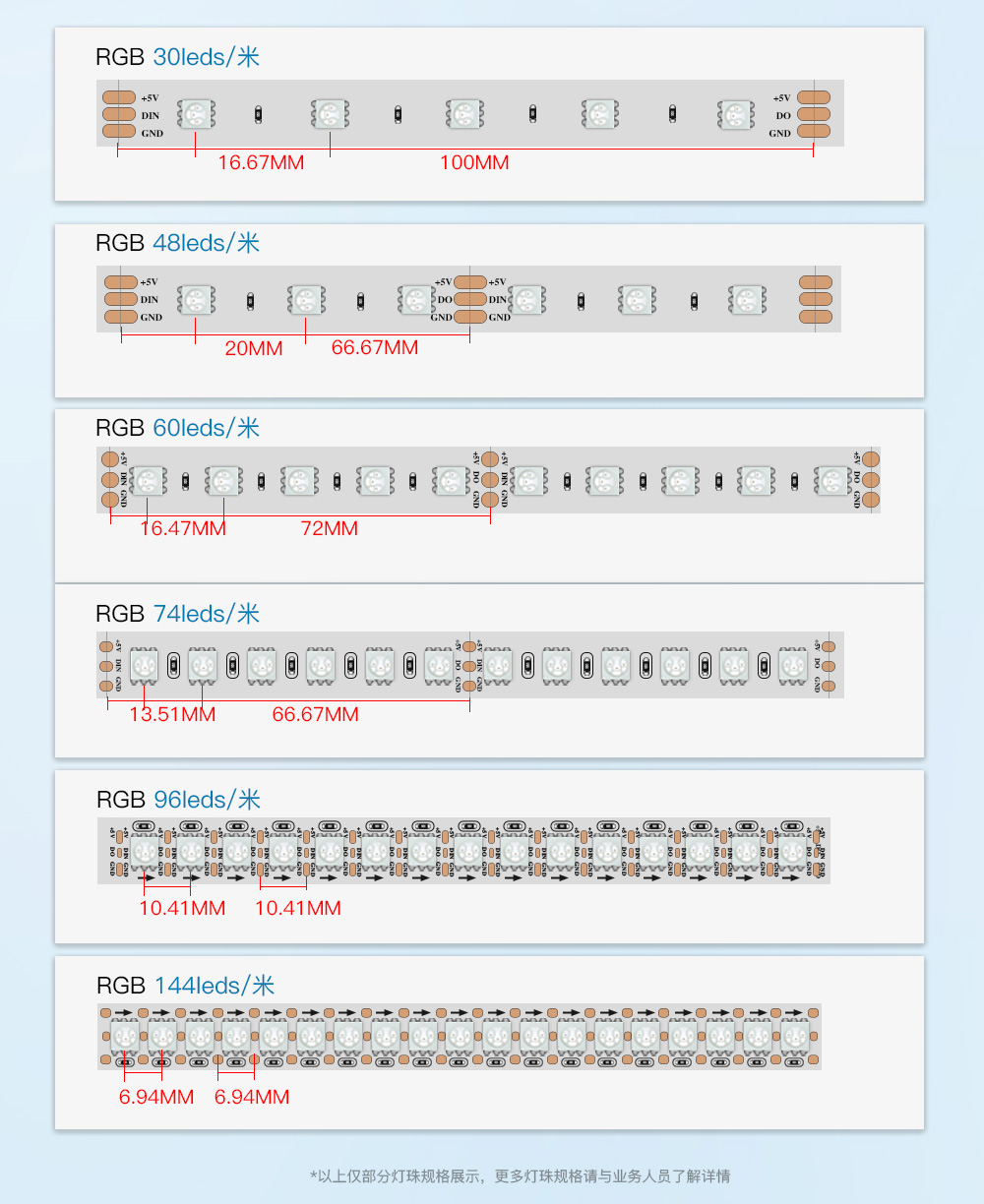

Picture details
