Dc24v 360viewing ws2811 16703 1903 1934 22mm dimater Digital flex 2834 RGB led silicone neon 16pixels 96led/m

Dc24v  360viewing ws2811 16703 1903 1934 22mm dimater Digital flex 2834 RGB led silicone neon 16pixels 96led/m

( two pcs led stirp inside the silicone tube to make 360 viewing,below is the specification for the 8mm width pixel led strip )

customized 22mm led tube

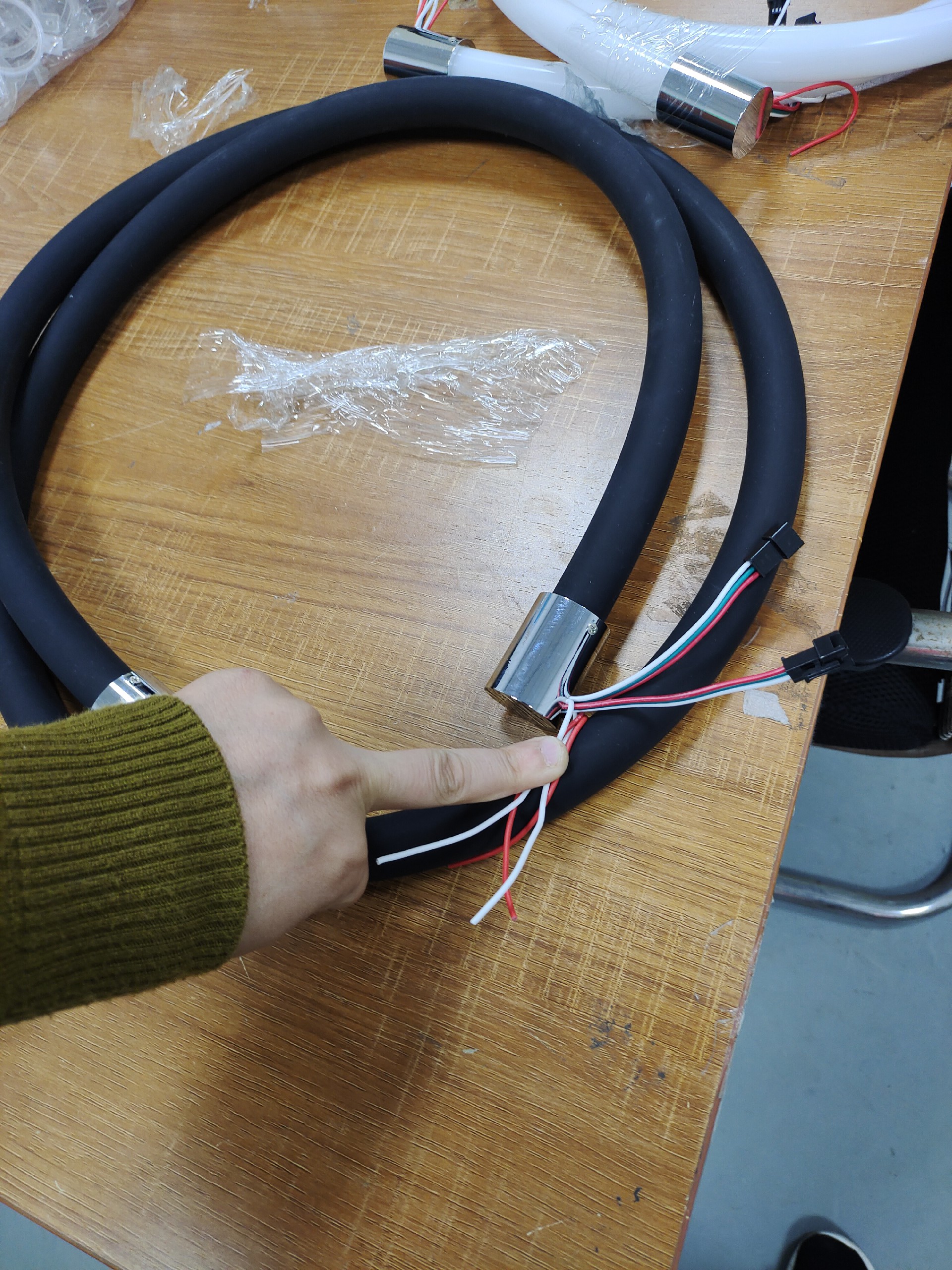

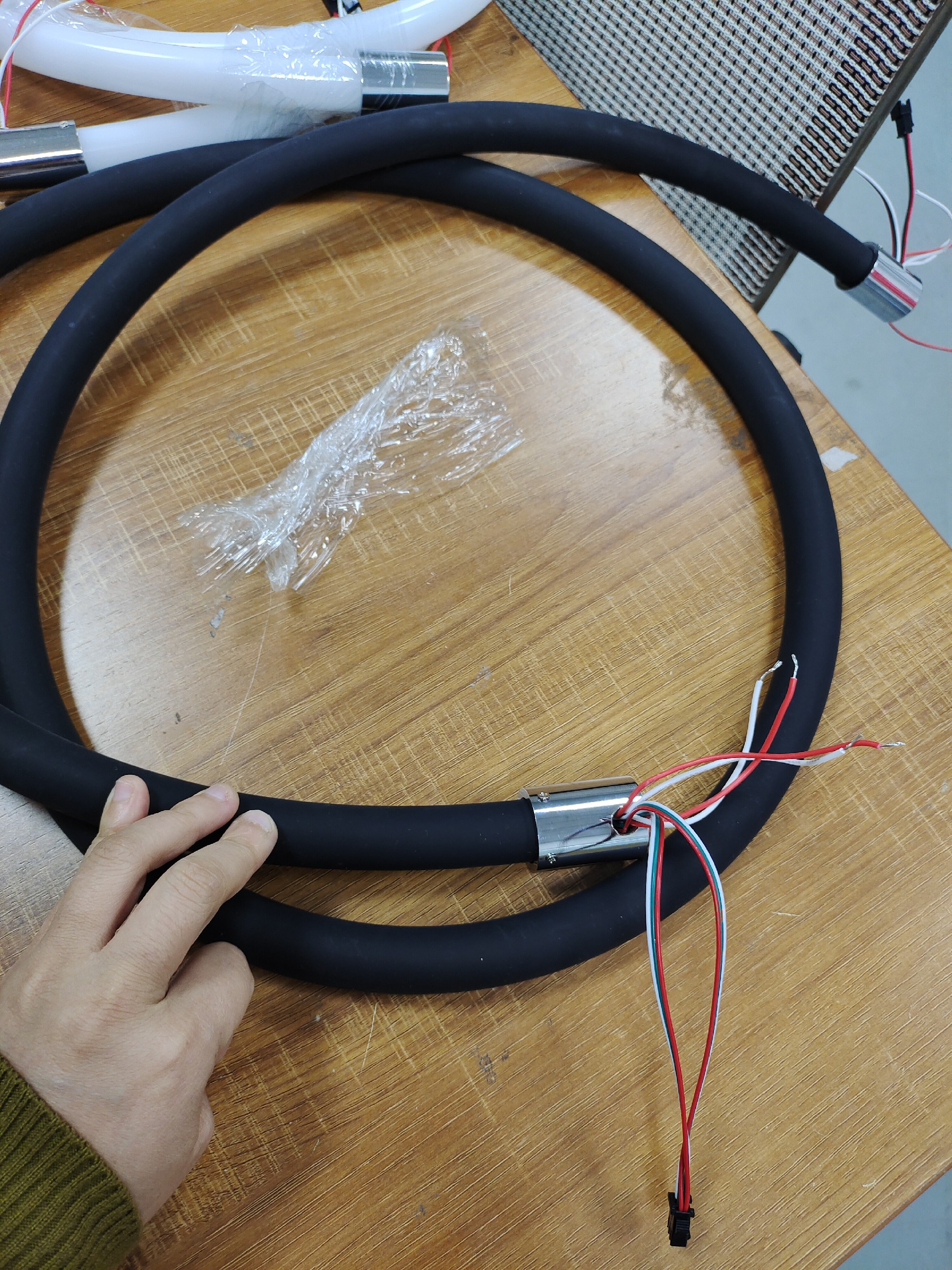

Below is D22 black tube VS D22 white tube

Specification

Catalog	360viewing  22mm dimater flex silicone neon 2835 rgb pixel led tube 16pixels 96led/m
Model	RL-STR-ws2811/1934-2835RGB-16P-96-24v-D22
LED Type	2835 rgb
Warranty	3 years
Working Voltage	DC24V
Power	15W/M(max)
FPCB Width	8mm
Lamp Chip Brand	sanan
LED Quantity	96leds/M
Cutting Unit	every  6LED can be cut as a individual part
Brightness for each 3535 led	2100MCD
Lamp Quality	Pure copper base and gold wire
IC Type	tm1934 ( 16Pixels per meter)
360 beam  viewing	two led strip inside the 22mm dimater silicone tube ( back to back)
Color	RGB addressable
waterproof Grade	IP20 Non waterproof
Diamater	22mm

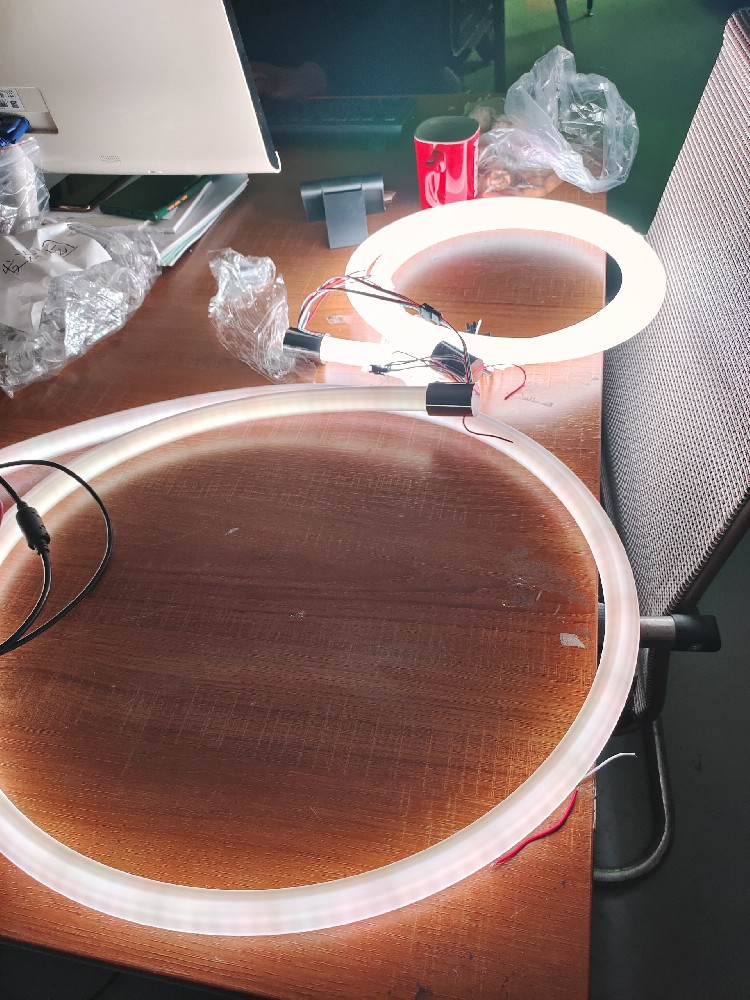

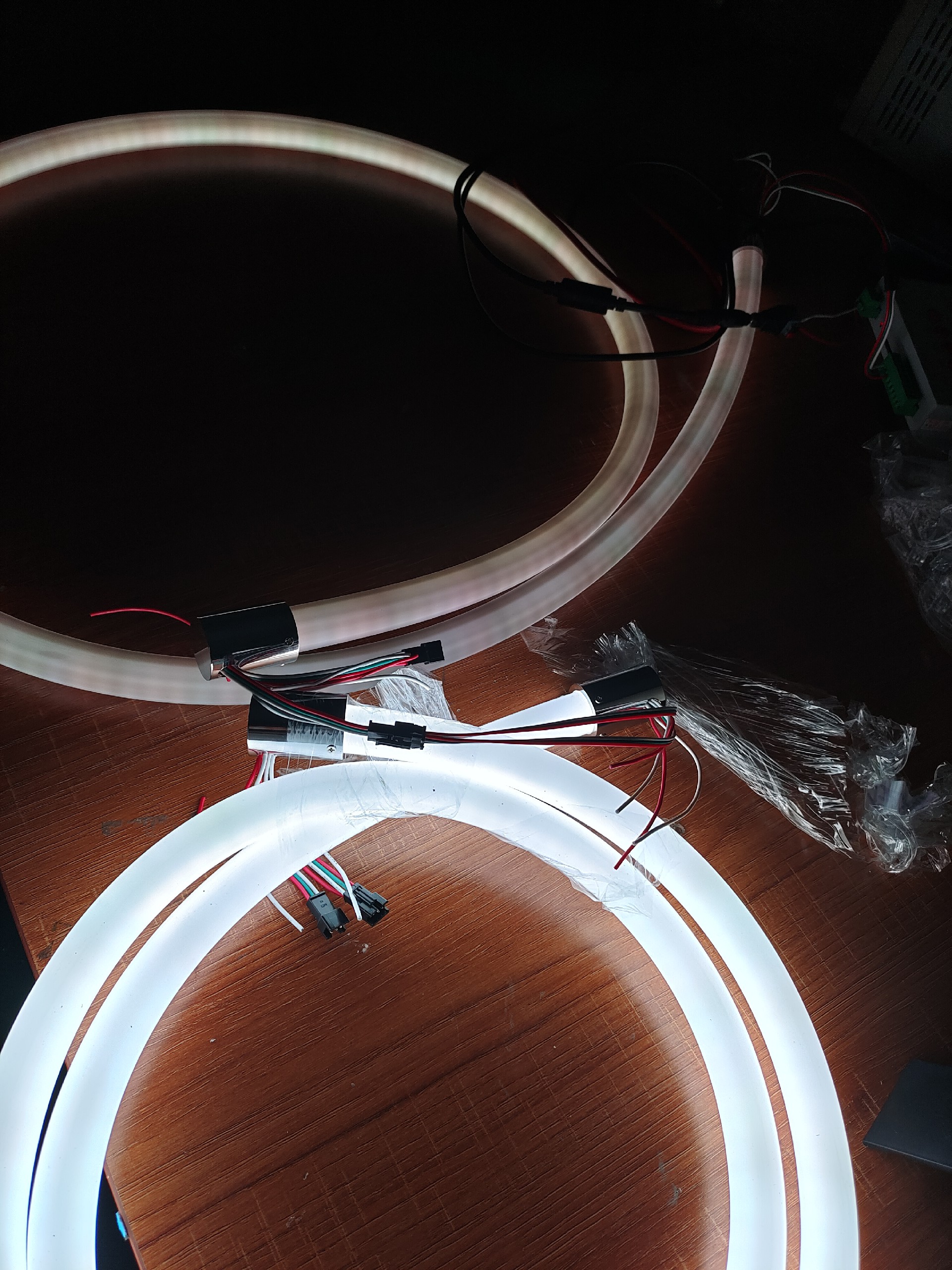

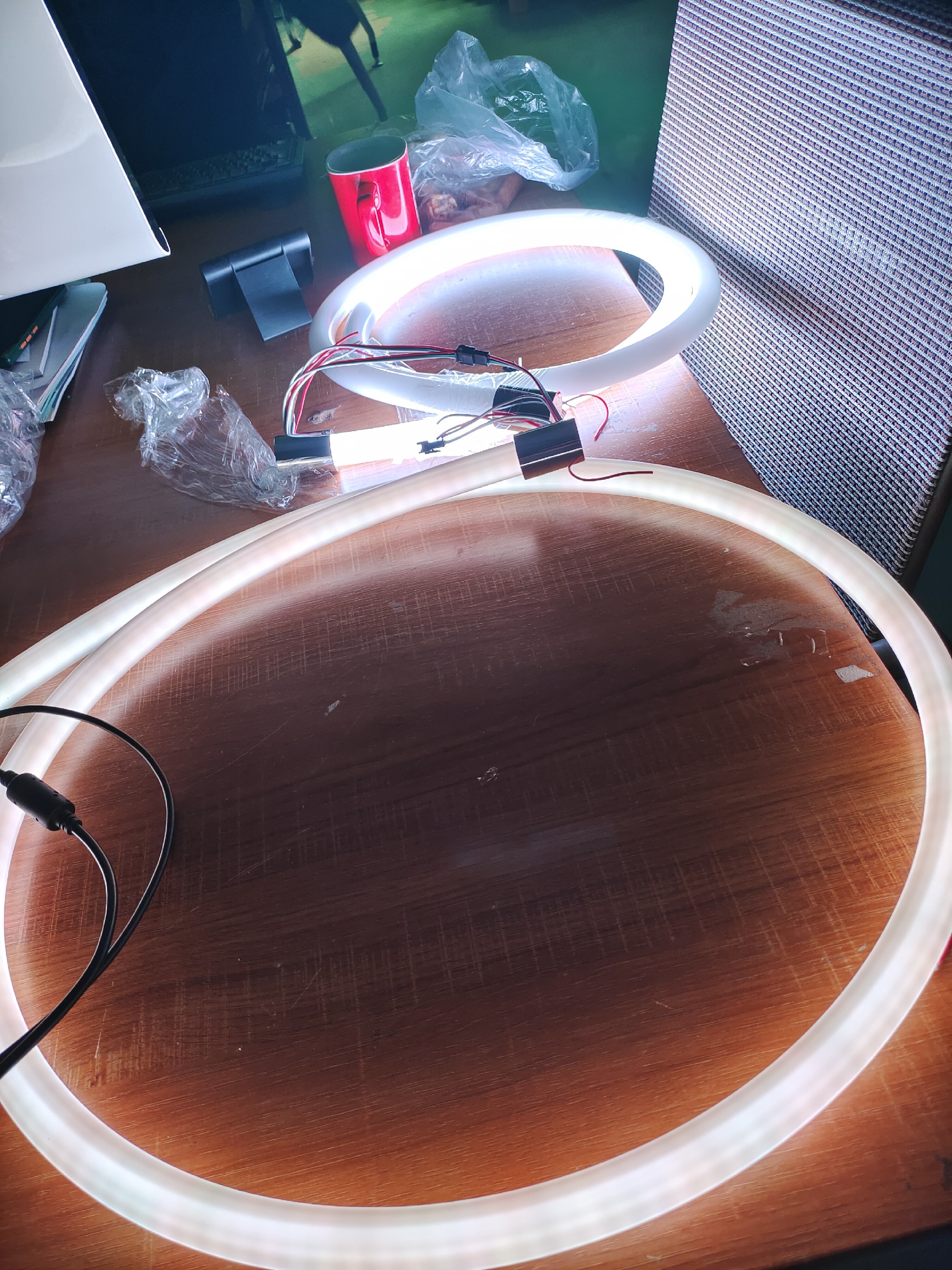

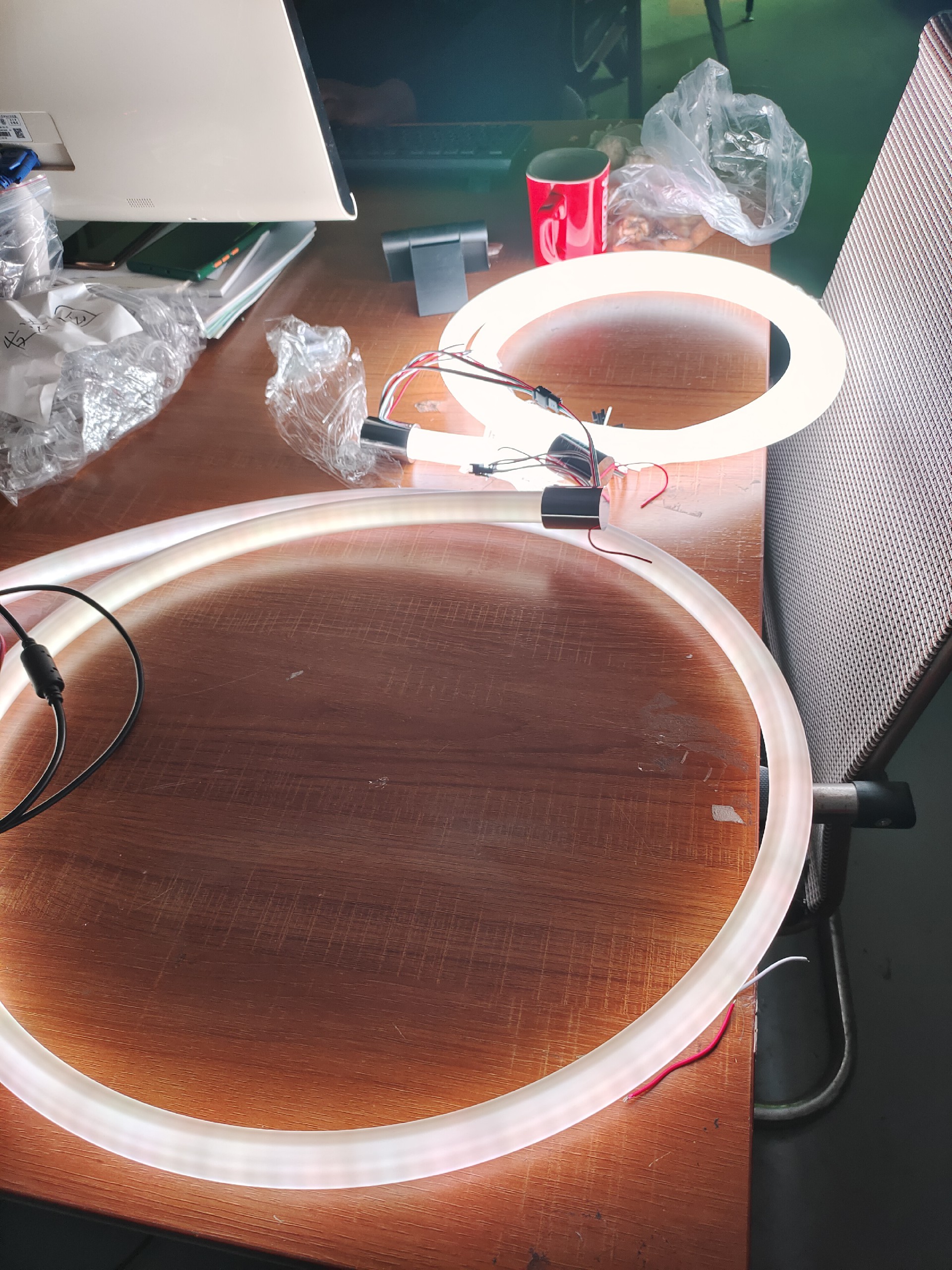

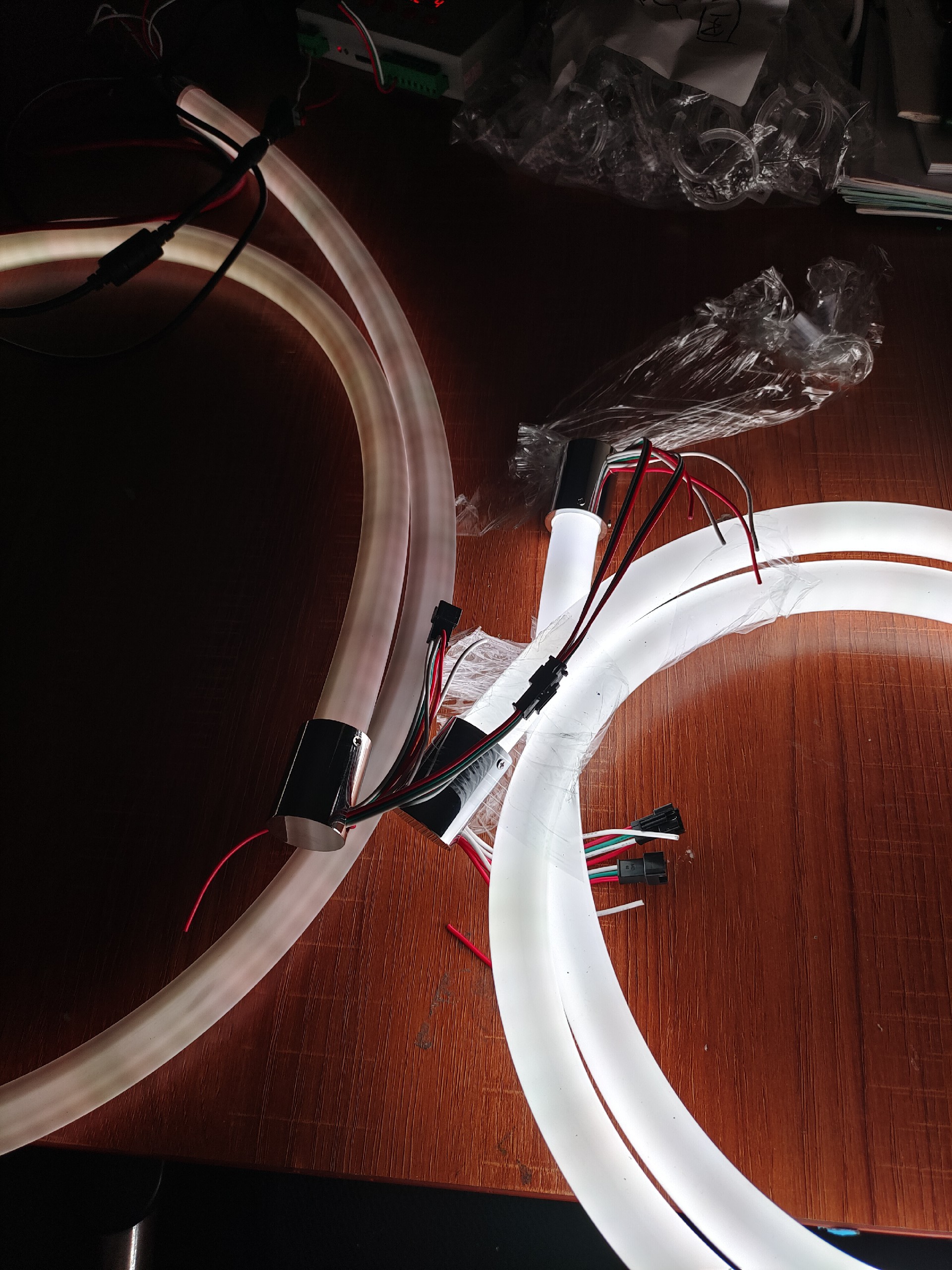

Below is our  360viewing 22mm silicone neon tube

( two pcs led stirp inside the silicone tube to make 360 viewing,

below is the specification for the 8mm width tm1934 2535 rgb  pixel led strip )

20、24V-TM1934-断点续传-2835-16段96D-EN.pdf

There is 8mm width pixel led strip inside









Application

Advantage of silicone flex led tube

1. there is no dark area and No light spot  for all type of  flex silicone Neon LED tube series,
2. it can be folded and bent without problem.
3. Easy to be installed and transported .
4. applied well in all kinds of High-end venue and outdoor use (Ip rate: 67)
5. take the advantage of unique optical technique and special housing design ,

it increases the intensity and uniformity of light greatly ,anti UV silicone coating ,

no color change outside within 3 years warranty
6. all series belong to low voltage flex led strip,voltage varies from DC5V-DC24v，

can be cut at 1led,3led,6leds to make a individual part.
7. various designed end caps for different project
8. Packing : Static bag seal packing(locking static bag + moisture-proof desiccant)
9. 5m/reel(length can be customized as the customer requirements)
