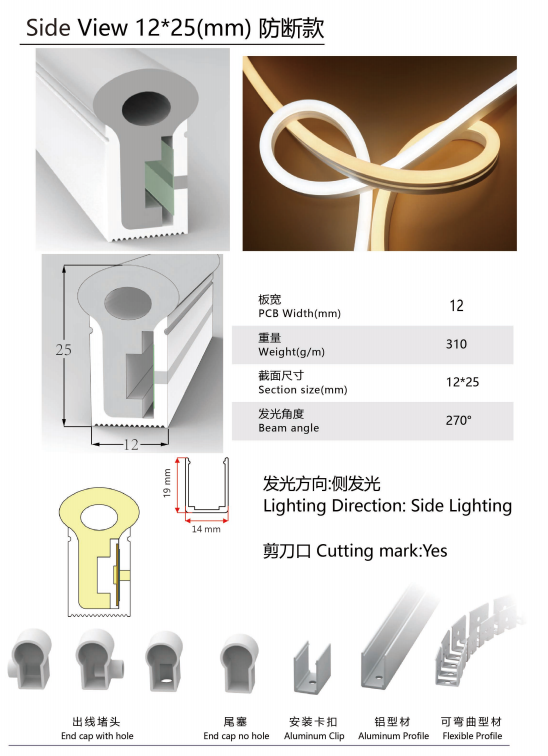

Side view 1023 1225 1020 size flex silicone neon 1934 rgb pixel led tube 20pixels 120led/m-no dark light spot

Side view 1023 1225 1020size  flex silicone neon 1934 rgb pixel led tube 20pixels 120led/m-no dark light spot

Specification

Catalog	Side view 1225size  flex silicone neon 2835 rgb pixel led tube 20pixels 120led/m
Model	RL-STR-1934-5050RGB-120-20P-24v-12X25
LED Type	5050 rgb
Warranty	3 years
Working Voltage	DC24V
Power	12W/M(max)
FPCB Width	10mm
Lamp Chip Brand	sanan
LED Quantity	120leds/M
Cutting Unit	every  6LED can be cut as a individual part
Brightness for each 3535 led	2100MCD
Lamp Quality	Pure copper base and gold wire
IC Type	TM1934 ( 20Pixels per meter)
beam viewing	120 degree
Color	RGB addressable
waterproof Grade	IP65 waterproof
silicone tube	12mmX25mm

( 1934 led stirp inside the silicone tube to make 120 viewing,below is the specification for the 10/12mm width pixel led strip )

There is 10mm width pixel led strip inside

click below for details for the 24v 20 pixels 120pcs led rgb led strip .

https://www.rose-light.com/list_3/10mm-1934-pixel-led-strip-.html

we can make black tube also

Below is the black silicone tube covering VS white silicone tube



Advantage of silicone flex led tube

1. there is real flex silicone Neon LED tube series,
2. it can be folded and bent without problem.
3. Easy to be installed and transported .
4. applied well in all kinds of High-end venue and outdoor use (Ip rate: 67)
5. take the advantage of unique optical technique and special housing design ,

it increases the intensity and uniformity of light greatly ,anti UV silicone coating ,

no color change outside within 3 years warranty
6. all series belong to low voltage flex led strip,voltage varies from DC5V-DC24v，

can be cut at 1led,3led,6leds to make a individual part.
7. various designed end caps for different project
8. Packing : Static bag seal packing(locking static bag + moisture-proof desiccant)
9. 5m/reel(length can be customized as the customer requirements)
